Y-Strainers
| FEATURE |
|---|
| Rating : ASNI 150/300/PN16/JIS 10K |
| Size : 1/2″~12″ (DN15~DN300) |
| Full Bore |
| Special Alloy is also available upon request. |

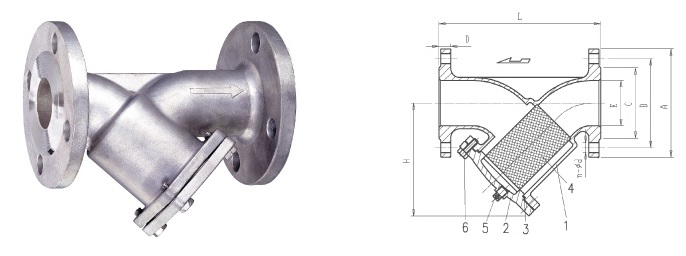

| ITEM | PARTS NAME | MATERIAL | Q’TY |
|---|---|---|---|
| 1 | Body | A351-CF8M/CF8 | 1 |
| 2 | Screen | SS316 / SS304 | 1 |
| 3 | Bottom Plug | A351-CF8M/CF8 | 1 |
| 4 | Packing | PTFE | 1 |
| 5 | Gasket | PTFE | 1 |
| 6 | Plug | A351-CF8M/CF8 | 4 |
| DIMENSION ANSI 150 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ITEM | H | L | A | B | C | D | NØ-D | ||
| SIZE | NPS | ||||||||
| 1/2″ | DN15 | 75 | 120 | 89 | 60.5 | 35 | 11.2 | 4-16 | |
| 3/4″ | DN20 | 75 | 140 | 98 | 70.0 | 43 | 11.2 | 4-16 | |
| 1″ | DN25 | 100 | 150 | 108 | 79.5 | 51 | 11.2 | 4-16 | |
| 1-1/2″ | DN40 | 120 | 190 | 127 | 98.5 | 73 | 14.3 | 4-16 | |
| 2″ | DN50 | 140 | 210 | 152 | 120.5 | 92 | 15.9 | 4-19 | |
| 2-1/2″ | DN65 | 175 | 250 | 178 | 139.5 | 105 | 17.5 | 4-19 | |
| 3″ | DN80 | 196 | 280 | 190 | 152.5 | 127 | 19.1 | 4-19 | |
| 4″ | DN100 | 244 | 340 | 229 | 190.5 | 157 | 23.9 | 8-19 | |
| 5″ | DN125 | 277 | 380 | 254 | 216.0 | 186 | 23.9 | 8-22 | |
| 6″ | DN150 | 320 | 420 | 279 | 241.5 | 216 | 25.4 | 8-22 | |
| 8″ | DN200 | 390 | 500 | 343 | 298.5 | 270 | 28.6 | 8-22 | |
| 10″ | DN250 | 430 | 700 | 406 | 362.0 | 324 | 30.2 | 12-25 | |
| 12″ | DN300 | 600 | 780 | 483 | 432.0 | 381 | 31.8 | 12-25 | |
* Unit : mm
