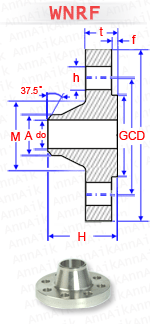

WNRF
NOMINAL PIPE SIZE | OUTSIDE DIA. (MM) | THICKNESS MIN (MM) | LENGTH THRU HUB (MM) | OUTSIDE DIA. OF NECK (MM) | DIA. AT BASE OF NECK (MM) | DIA. OF RAISED FACE (MM) | NUMBER OF HOLES | DIA. OF HOLES (MM) | DIA. OF BOLT CIRCLE (MM) | DIA. OF BORE (MM) | HEIGHT OF RAISED FACE (MM) | APPROX WEIGHT (KG) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCH 10S | SCH40S/ STD | SCH80S/ XS | ||||||||||||
D | t | H | A | M | G | h | K | do | f | |||||
1/2" | 120.6 | 22.3 | 60.4 | 21.3 | 38.1 | 35.0 | 4 | 22.3 | 82.5 | 17.1 | 15.8 | 13.9 | 2.3 | |
3/4" | 130.2 | 25.4 | 69.8 | 26.7 | 44.4 | 42.9 | 4 | 22.3 | 88.9 | 22.5 | 20.9 | 18.8 | 2.7 | |
1" | 149.3 | 28.4 | 73.1 | 33.4 | 52.3 | 50.8 | 4 | 25.4 | 101.6 | 27.9 | 26.6 | 24.5 | 4.1 | |
1.1/4" | 158.7 | 28.4 | 73.1 | 42.2 | 63.5 | 63.5 | 4 | 25.4 | 111.2 | 36.6 | 35.1 | 32.5 | 4.5 | |
1.1/2" | 177.8 | 31.7 | 82.5 | 48.3 | 69.8 | 73.1 | 4 | 28.4 | 123.9 | 42.7 | 40.9 | 38.1 | 5.9 | |
2" | 215.9 | 38.1 | 101.6 | 60.3 | 104.6 | 91.9 | 8 | 25.4 | 165.1 | 54.9 | 52.7 | 49.5 | 11.3 | |
2.1/2" | 244.3 | 41.1 | 104.6 | 73.0 | 123.9 | 104.6 | 8 | 28.4 | 190.5 | 67.2 | 62.7 | 59.0 | 16.3 | |
3" | 266.7 | 47.7 | 117.3 | 88.9 | 133.3 | 127.0 | 8 | 31.7 | 203.2 | 82.9 | 77.9 | 73.7 | 21.8 | |
4" | 311.1 | 53.8 | 123.9 | 114.3 | 162.0 | 157.2 | 8 | 35.0 | 241.3 | 108.3 | 102.3 | 97.2 | 33 | |
5" | 374.6 | 73.1 | 155.4 | 141.2 | 196.8 | 185.6 | 8 | 41.1 | 292.1 | 134.4 | 128.2 | 122.3 | 59 | |
6" | 393.7 | 82.5 | 171.4 | 168.4 | 228.6 | 215.9 | 12 | 38.1 | 317.5 | 161.6 | 154.2 | 146.3 | 75 | |
8" | 482.6 | 91.9 | 212.8 | 219.2 | 292.1 | 269.7 | 12 | 44.4 | 393.7 | 211.6 | 202.7 | 193.7 | 125 | |
10" | 584.2 | 107.9 | 254.0 | 273.0 | 368.3 | 323.8 | 12 | 50.8 | 482.6 | 264.6 | 254.5 | 247.7 | 206 | |
12" | 673.1 | 123.9 | 282.4 | 323.8 | 450.8 | 381.0 | 16 | 53.8 | 571.5 | 314.6 | 304.9 | 298.5 | 313 | |
14′ | 749.3 | 133.3 | 298.4 | 355.6 | 495.3 | 412.7 | 16 | 60.4 | 635.0 | 346.0 | 336.6 | 330.2 | 380 | |
16" | 825.5 | 146.0 | 311.1 | 406.4 | 552.4 | 469.9 | 16 | 66.5 | 704.8 | 396.8 | 387.3 | 381.0 | 485 | |
18" | 914.4 | 162.0 | 327.1 | 457.2 | 596.9 | 533.4 | 16 | 73.1 | 774.7 | 447.6 | 438.1 | 431.8 | 644 | |
20" | 984.2 | 177.8 | 355.6 | 508.0 | 641.3 | 584.2 | 16 | 79.2 | 831.8 | 497.0 | 488.9 | 482.6 | 775 | |
24" | 1168.4 | 203.2 | 406.4 | 609.6 | 762.0 | 692.1 | 16 | 91.9 | 990.6 | 598.5 | 590.5 | 584.2 | 1232 |
