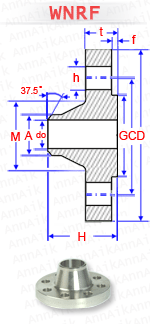

WNRF
| NOMINAL PIPE SIZE | DIA. OF BORE (MM) | OUTSIDE DIA. (MM) | THICKNESS MIN (MM) | LENGTH THRU HUB (MM) | OUTSIDE DIA. OF NECK (MM) | DIA. AT BASE OF NECK (MM) | DIA. OF RAISED FACE (MM) | NUMBER OF HOLES | DIA. OF HOLES (MM) | DIA. OF BOLT CIRCLE (MM) | HEIGHT OF FACE(MM) | APPROX WEIGHT (KG) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 10S | SCH 10S | SCH40S/ STD | ||||||||||||
| do | D | t | H | A | M | G | h | C | f | |||||
| 1/2" | 17.1 | 15.8 | 13.9 | 88.9 | 11.2 | 47.8 | 21.3 | 30.2 | 35.1 | 4 | 15.7 | 60.5 | 1.6 | 0.5 |
| 3/4" | 22.5 | 20.9 | 18.8 | 98.6 | 12.7 | 52.3 | 26.7 | 38.1 | 42.9 | 4 | 15.7 | 69.9 | 1.6 | 0.7 |
| 1" | 27.9 | 26.6 | 24.5 | 108.0 | 14.2 | 55.6 | 33.5 | 49.3 | 50.8 | 4 | 15.7 | 79.2 | 1.6 | 1 |
| 1.1/4" | 36.6 | 35.1 | 32.5 | 117.3 | 15.7 | 57.2 | 42.2 | 58.7 | 63.5 | 4 | 15.7 | 88.9 | 1.6 | 1.4 |
| 1.1/2" | 42.7 | 40.9 | 38.1 | 127.0 | 17.5 | 62.0 | 48.3 | 65.0 | 73.2 | 4 | 15.7 | 98.6 | 1.6 | 1.8 |
| 2" | 54.9 | 52.7 | 49.5 | 152.4 | 19.1 | 63.5 | 60.5 | 77.7 | 91.9 | 4 | 19.1 | 120.7 | 1.6 | 2.6 |
| 2.1/2" | 67.2 | 62.7 | 59.0 | 177.8 | 22.4 | 69.9 | 73.2 | 90.4 | 104.6 | 4 | 19.1 | 139.7 | 1.6 | 4.2 |
| 3" | 82.9 | 77.9 | 73.7 | 190.5 | 23.9 | 69.9 | 88.9 | 108.0 | 127.0 | 4 | 19.1 | 152.4 | 1.6 | 5 |
| 3.1/2" | 95.6 | 90.1 | 85.5 | 215.9 | 23.9 | 71.4 | 101.6 | 122.2 | 139.7 | 8 | 19.1 | 177.8 | 1.6 | 6.1 |
| 4" | 108.3 | 102.3 | 97.2 | 229.6 | 23.9 | 76.2 | 114.3 | 134.9 | 157.2 | 8 | 19.1 | 190.5 | 1.6 | 7 |
| 5" | 134.4 | 128.2 | 122.3 | 254.0 | 23.9 | 88.9 | 141.2 | 163.6 | 185.7 | 8 | 22.2 | 215.9 | 1.6 | 8.6 |
| 6" | 161.6 | 154.2 | 146.3 | 279.4 | 25.4 | 88.9 | 168.4 | 192.0 | 215.9 | 8 | 22.2 | 241.3 | 1.6 | 10.6 |
| 8" | 211.6 | 202.7 | 193.7 | 342.9 | 28.4 | 101.6 | 219.2 | 246.1 | 269.7 | 8 | 22.4 | 298.5 | 1.6 | 17.6 |
| 10" | 264.6 | 254.5 | 247.7 | 406.4 | 30.2 | 101.6 | 273.1 | 304.8 | 323.9 | 12 | 25.4 | 362.0 | 1.6 | 24 |
| 12" | 314.6 | 304.9 | 298.5 | 482.6 | 31.8 | 114.3 | 323.9 | 365.3 | 381.0 | 12 | 25.4 | 431.8 | 1.6 | 37 |
| 14" | 346.0 | 336.6 | 330.2 | 533.4 | 35.1 | 127.0 | 355.6 | 400.1 | 412.8 | 12 | 28.4 | 476.3 | 1.6 | 49 |
| 16" | 396.8 | 387.3 | 381.0 | 596.9 | 36.6 | 127.0 | 406.4 | 457.2 | 469.9 | 16 | 28.4 | 539.8 | 1.6 | 61 |
| 18" | 447.6 | 438.1 | 431.8 | 635.0 | 39.6 | 139.7 | 457.2 | 505.0 | 533.4 | 16 | 31.8 | 577.9 | 1.6 | 68 |
| 20" | 497.0 | 488.9 | 482.6 | 698.5 | 42.9 | 144.5 | 508.0 | 558.8 | 584.2 | 20 | 31.8 | 635.0 | 1.6 | 85 |
| 22" | 547.7 | 539.7 | 533.4 | 749.3 | 46.0 | 149.2 | 558.8 | 609.6 | 641.2 | 20 | 35.1 | 692.1 | 1.6 | 102 |
| 24" | 598.5 | 590.5 | 584.2 | 812.8 | 47.8 | 152.4 | 609.6 | 663.4 | 692.1 | 20 | 35.1 | 749.3 | 1.6 | 115 |
