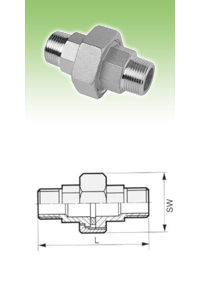

Union Flat Seat With Gasket M/M
| SIZE | L | SW |
|---|---|---|
| 1/8″ | 52.0 | 25.0 |
| 1/4″ | 61.0 | 30.0 |
| 3/8″ | 62.5 | 35.0 |
| 1/2″ | 73.0 | 42.0 |
| 3/4″ | 82.0 | 47.0 |
| 1″ | 91.0 | 53.0 |
| 1-1/4″ | 104.0 | 71.0 |
| 1-1/2″ | 109.6 | 78.0 |
| 2″ | 118.0 | 92.0 |
| 2 -1/2″ | 145.0 | 112.0 |
| 3″ | 164.0 | 126.0 |
| 4″ | 205.0 | 157.0 |
| Unit : MM | ||
