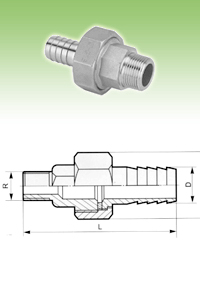

Union Flat Seat with Gasket H/M
| SIZE | R | SW | L | D |
|---|---|---|---|---|
| 1/8″ | 1/8″ | 25.0 | 52.9 | 6.5 |
| 1/4″ | 1/4″ | 30.0 | 59.0 | 9.0 |
| 3/8″ | 3/8″ | 35.0 | 67.5 | 11.0 |
| 1/2″ | 1/2″ | 42.0 | 80.0 | 14.0 |
| 3/4″ | 3/4″ | 47.0 | 85.7 | 20.5 |
| 1″ | 1″ | 53.0 | 90.5 | 27.0 |
| 1-1/4″ | 1-1/4″ | 71.0 | 103.5 | 33.0 |
| 1-1/2″ | 1-1/2″ | 77.0 | 119.0 | 39.5 |
| 2″ | 2″ | 92.0 | 130.0 | 52.0 |
| Unit : MM | ||||
