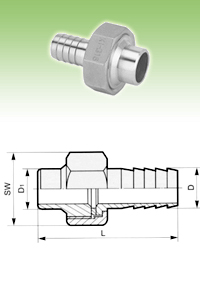

Union Flat Seat with Gasket H/BW
| SIZE | SW | L | D | D1 |
|---|---|---|---|---|
| 1/8″ | 25.0 | 41.0 | 6.5 | 10.2 |
| 1/4″ | 30.0 | 47.2 | 9.0 | 13.5 |
| 3/8″ | 35.0 | 54.5 | 11.0 | 17.2 |
| 1/2″ | 42.0 | 64.1 | 14.0 | 21.3 |
| 3/4″ | 47.0 | 70.0 | 20.5 | 26.9 |
| 1″ | 53.0 | 67.8 | 27.0 | 33.7 |
| 1-1/4″ | 71.0 | 81.8 | 33.0 | 42.4 |
| 1-1/2″ | 77.0 | 95.7 | 39.5 | 48.3 |
| 2″ | 92.0 | 105.4 | 52.0 | 60.3 |
| Unit : MM | ||||
