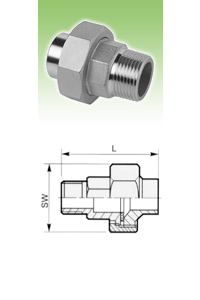

Union Flat Seat With Gasket BW/M
| SIZE | L | SW |
|---|---|---|
| 1/8″ | 40.0 | 25.0 |
| 1/4″ | 48.3 | 30.0 |
| 3/8″ | 50.0 | 35.0 |
| 1/2″ | 56.4 | 42.0 |
| 3/4″ | 66.4 | 47.0 |
| 1″ | 69.0 | 53.0 |
| 1-1/4″ | 83.0 | 71.0 |
| 1-1/2″ | 86.0 | 78.0 |
| 2″ | 95.0 | 92.0 |
| 2 -1/2″ | 113.3 | 112.0 |
| 3″ | 126.3 | 127.0 |
| 4″ | 154.3 | 157.0 |
| Unit : MM | ||
