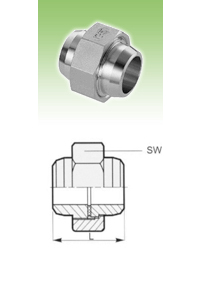

Union Couplings (Flat Seat)
Category
| SIZE | L | SW |
|---|---|---|
| 1/8" | 37.5 | 28.5 |
| 1/4" | 37.5 | 28.5 |
| 3/8" | 39.6 | 33.0 |
| 1/2" | 46.0 | 38.5 |
| 3/4" | 48.1 | 46.0 |
| 1" | 51.4 | 51.0 |
| 1-1/4" | 59.5 | 63.5 |
| 1-1/2" | 71.0 | 75.0 |
| 2" | 76.5 | 92.0 |
| 2 -1/2" | 90.5 | 110.0 |
| 3" | 90.0 | 120.0 |
| Unit : MM | ||
