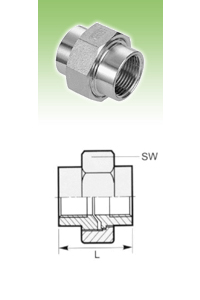

Union Conical Joint Inside/Outside Thread
| SIZE | L | SW |
|---|---|---|
| 1/8" | 36.5 | 28.5 |
| 1/4" | 36.5 | 28.5 |
| 3/8" | 38.5 | 33.0 |
| 1/2" | 45.2 | 38.5 |
| 3/4" | 47.5 | 46.0 |
| 1" | 51.0 | 51.0 |
| 1-1/4" | 59.0 | 63.5 |
| 1-1/2" | 71.0 | 75.2 |
| 2" | 76.0 | 92.0 |
| 2 -1/2" | 90.0 | 110.0 |
| 3" | 89.0 | 120.0 |
| Unit : MM | ||
