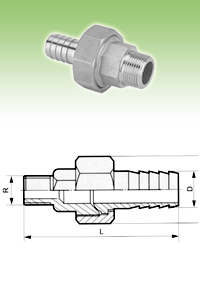

Union Conical Joint H/M
| SIZE | R | SW | L | D |
|---|---|---|---|---|
| 1/8" | 1/8" | 25.0 | 52.9 | 6.5 |
| 1/4" | 1/4" | 30.0 | 59.0 | 9.0 |
| 3/8" | 3/8" | 35.0 | 67.5 | 11.0 |
| 1/2" | 1/2" | 42.0 | 80.0 | 14.0 |
| 3/4" | 3/4" | 47.0 | 85.7 | 20.5 |
| 1" | 1" | 53.0 | 90.5 | 27.0 |
| 1-1/4" | 1-1/4" | 71.0 | 103.5 | 33.0 |
| 1-1/2" | 1-1/2" | 77.0 | 119.0 | 39.5 |
| 2" | 2" | 92.0 | 130.0 | 52.0 |
| Unit : MM | ||||
