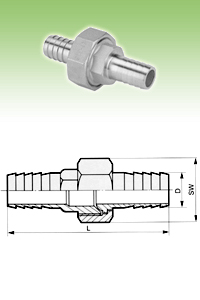

Union Conical Joint H/H
| SIZE | SW | L | D |
|---|---|---|---|
| 1/8" | 25.0 | 60.7 | 6.5 |
| 1/4" | 30.0 | 63.5 | 9.0 |
| 3/8" | 35.0 | 82.5 | 11.0 |
| 1/2" | 42.0 | 97.0 | 14.0 |
| 3/4" | 47.0 | 99.7 | 20.5 |
| 1" | 53.0 | 99.0 | 27.0 |
| 1-1/4" | 71.0 | 118.0 | 33.0 |
| 1-1/2" | 77.0 | 143.5 | 39.5 |
| 2" | 92.0 | 156.0 | 52.0 |
| Unit : MM | |||
