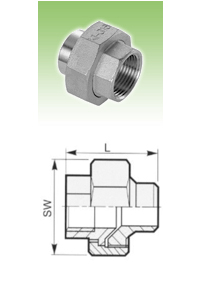

Union Conical Joint BW/F
| SIZE | L | SW |
|---|---|---|
| 1/8" | 29.0 | 25.0 |
| 1/4" | 35.5 | 30.0 |
| 3/8" | 38.0 | 35.0 |
| 1/2" | 41.0 | 42.0 |
| 3/4" | 50.4 | 47.0 |
| 1" | 48.0 | 53.0 |
| 1-1/4" | 59.0 | 71.0 |
| 1-1/2" | 64.0 | 78.0 |
| 2" | 68.0 | 92.0 |
| 2 -1/2" | 80.0 | 112.0 |
| 3" | 88.0 | 126.0 |
| 4" | 108.0 | 157.0 |
| Unit : MM | ||
