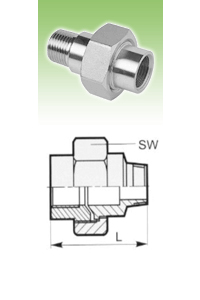

Union Conical Inside/Outside Thread
| SIZE | L | SW |
|---|---|---|
| 1/4" | 50.0 | 28.5 |
| 3/8" | 52.5 | 33.0 |
| 1/2" | 61.5 | 38.5 |
| 3/4" | 64.5 | 46.0 |
| 1" | 71.5 | 51.0 |
| 1-1/4" | 82.0 | 63.5 |
| 1-1/2" | 95.0 | 75.0 |
| 2" | 103.0 | 92.0 |
| 2 -1/2" | 123.0 | 110.0 |
| 3" | 125.5 | 120.0 |
| Unit : MM | ||
