THFF

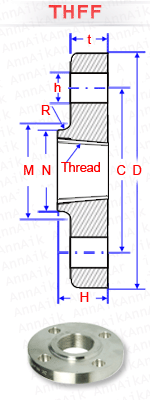

| NOMINAL PIPE SIZE | OUTSIDE DIA. (MM) | DIA. BOLT OF CIRCLE (MM) | DIA. OF HOLES (MM) | NUMBER OF HOLES | THICKNESS MIN. (MM) | DIA. OF HUB AT SMALL END (MM) | DIA. OF HUB AT LARGE END (MM) | LENGTH THRU. HUB (MM) | RADIUS OF FILLET (MM) | APPROX. WEIGHT (KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D | C | h | t | N | M | H | R | |||
| 3/8" | 10 | 90 | 65 | 15 | 4 | 14 | 30 | 32 | 20 | 4 | 0.60 |
| 1/2" | 15 | 95 | 70 | 15 | 4 | 14 | 34 | 36 | 20 | 4 | 0.67 |
| 3/4" | 20 | 100 | 75 | 15 | 4 | 16 | 40 | 42 | 22 | 4 | 0.84 |
| 1" | 25 | 125 | 90 | 19 | 4 | 16 | 48 | 50 | 24 | 4 | 1.32 |
| 1.1/4" | 32 | 135 | 100 | 19 | 4 | 18 | 56 | 60 | 26 | 5 | 1.64 |
| 1.1/2" | 40 | 140 | 105 | 19 | 4 | 18 | 62 | 66 | 26 | 5 | 1.74 |
| 2" | 50 | 155 | 120 | 19 | 8 | 18 | 76 | 80 | 26 | 5 | 1.97 |
| 2.1/2" | 65 | 175 | 140 | 19 | 8 | 20 | 100 | 104 | 30 | 5 | 2.91 |
| 3" | 80 | 200 | 160 | 23 | 8 | 22 | 113 | 117 | 34 | 6 | 4.08 |
| 3.1/2" | 90 | 210 | 170 | 23 | 8 | 24 | 126 | 130 | 36 | 6 | - |
| 4" | 100 | 225 | 185 | 23 | 8 | 24 | 138 | 142 | 36 | 6 | 5.35 |
| 5" | 125 | 270 | 225 | 25 | 8 | 26 | 166 | 172 | 40 | 6 | 8.44 |
| 6" | 150 | 305 | 260 | 25 | 12 | 28 | 196 | 202 | 42 | 6 | 11.1 |
