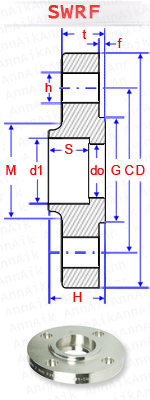

SWRF
| NOMINAL PIPE SIZE | DIA. OF BORE(MM) | OUTSIDE DIA.(MM) | BORE OF SOCKET | DEPTH OF SOCKET (MM) | THICKNESS MIN (MM) | LENGTH THRU HUB (MM) | DIA. OF BASE OF HUB(MM) | DIA. OF RAISED FACE(MM) | NUMBER OF BOLT HOLES | DIAM OF HOLES(MM) | DIA. OF BOLT CIRCLE(MM) | HEIGHT OF RAISED FACE(MM) | APPROX WEIGHT(KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 40S/ STD | SCH 80S/ XS | |||||||||||||
| do | D | d1 | S | t | H | M | G | h | C | f | ||||
| 1/2" | 15.8 | 13.9 | 120.6 | 22.4 | 9.6 | 22.3 | 31.7 | 38.1 | 35.1 | 4 | 22.3 | 82.5 | 1.8 | |
| 3/4" | 20.9 | 18.8 | 130.0 | 27.7 | 11.1 | 25.4 | 35.0 | 44.4 | 42.9 | 4 | 22.3 | 88.9 | 2.4 | |
| 1" | 26.6 | 24.3 | 149.3 | 34.5 | 12.7 | 28.4 | 41.1 | 52.3 | 50.8 | 4 | 25.4 | 101.6 | 3.5 | |
| 1.1/4" | 35.1 | 32.5 | 158.7 | 43.2 | 14.2 | 28.4 | 41.1 | 63.5 | 63.5 | 4 | 25.4 | 111.2 | 4.0 | |
| 1.1/2" | 40.9 | 38.1 | 177.8 | 49.5 | 15.7 | 31.7 | 44.5 | 69.8 | 73.1 | 4 | 28.4 | 123.9 | 5.4 | |
| 2" | 52.5 | 49.3 | 215.9 | 62.0 | 17.5 | 38.1 | 57.1 | 104.6 | 91.9 | 8 | 25.4 | 165.1 | 10.2 | |
| 2.1/2" | 62.7 | 59.0 | 244.3 | 74.7 | 19.0 | 41.1 | 63.5 | 123.9 | 104.6 | 8 | 28.4 | 190.5 | 13.9 | |
