SWRF
| NOMINAL PIPE SIZE | DIA. OF BORE(MM) | OUTSIDE DIA.(MM) | BORE OF SOCKET (MM) | DEPTH OF SOCKET (MM) | THICKNESS MIN (MM) | LENGTH THRU HUB (MM) | DIA. OF BASE OF HUB(MM) | DIA. OF RAISED FACE(MM) | NUMBER OF HOLES | DIA. OF HOLES(MM) | DIA. OF BOLT CIRCLE (MM) | HEIGHT OF RAISED FACE (MM) | APPROX. WEIGHT(KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 40S/ STD | SCH 80S/ XS | |||||||||||||

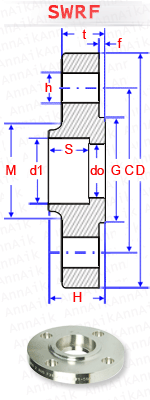

| do | D | d1 | S | t | H | M | G | h | C | f | ||||
| 1/2" | 15.8 | 13.9 | 95.3 | 22.4 | 9.6 | 14.2 | 22.4 | 38.1 | 35.1 | 4 | 15.7 | 66.5 | 6.4 | 0.9 |
| 3/4" | 20.9 | 18.8 | 117.3 | 27.7 | 11.1 | 15.7 | 25.4 | 47.8 | 42.9 | 4 | 19.1 | 82.6 | 6.4 | 1.3 |
| 1" | 26.6 | 24.3 | 124.0 | 34.5 | 12.7 | 17.5 | 26.9 | 53.8 | 50.8 | 4 | 19.1 | 88.9 | 6.4 | 1.6 |
| 1.1/4" | 35.1 | 32.5 | 133.4 | 43.2 | 14.2 | 20.6 | 28.4 | 63.5 | 63.5 | 4 | 19.1 | 98.6 | 6.4 | 2.1 |
| 1.1/2" | 40.9 | 38.1 | 155.4 | 49.5 | 15.7 | 22.4 | 31.8 | 69.9 | 73.1 | 4 | 22.4 | 114.3 | 6.4 | 3.0 |
| 2" | 52.5 | 49.3 | 165.1 | 62.0 | 17.5 | 25.4 | 36.6 | 84.1 | 91.9 | 8 | 19.1 | 127.0 | 6.4 | 3.7 |
| 2.1/2" | 62.7 | 59.0 | 190.5 | 74.7 | 19.0 | 28.4 | 41.1 | 100.0 | 104.6 | 8 | 22.4 | 149.4 | 6.4 | 5.4 |
| 3" | 77.9 | 73.7 | 209.6 | 90.7 | 20.6 | 31.8 | 46.0 | 117.3 | 127.0 | 8 | 22.4 | 168.1 | 6.4 | 7.1 |
| 3.1/2" | 90.1 | 85.5 | 228.6 | 103.4 | 22.2 | 35.1 | 49.2 | 133.4 | 139.7 | 8 | 25.4 | 184.2 | 6.4 | 9.5 |
