Swing Check Valve
| FEATURE |
|---|
| Working Pressure : 200 PSI |
| Size : 1/2″~3″ |
| Threaded End : NPT, BSPT, BSPF, DIN 2999 |
| ITEM | PARTS NAME | MATERIAL |
|---|---|---|
| 1 | Body | A351-CF8M |
| 2 | Bonnet | A351-CF8M |
| 3 | Disc | A351-CF8M |
| 4 | Connection Rod | A351-CF8M |
| 5 | Disc Nut | SS316 |
| 6 | Pin | SS304 |
| 7 | Gasket | PTFE |

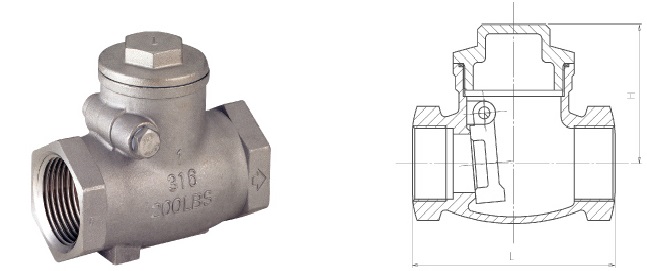

| DIMENSION | |||
|---|---|---|---|
| ITEM | L | H | |
| SIZE | NPS | ||
| 1/2″ | DN15 | 60 | 41.5 |
| 3/4″ | DN20 | 78 | 46.0 |
| 1″ | DN25 | 84 | 49.0 |
| 1-1/4″ | DN32 | 94 | 53.5 |
| 1-1/2″ | DN40 | 104 | 58.5 |
| 2″ | DN50 | 122 | 67.0 |
| 2-1/2″ | DN65 | 153 | 105.0 |
| 3″ | DN80 | 175 | 125.0 |
* Unit : mm
