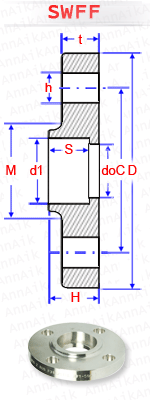

SWFF
| NOMINAL PIPE SIZE | DIA. OF BORE(MM) | OUTSIDE DIA.(MM) | BORE OF SOCKET(MM) | DEPTH OF SOCKET (MM) | THICKNESS MIN (MM) | LENGTH THRU HUB (MM) | DIA. OF BASE OF HUB(MM) | NUMBER OF HOLES | DIA. OF HOLES(MM) | DIA. OF BOLT CIRCLE(MM) | APPROX. WEIGHT (KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 40S/ STD | SCH 80S/ XS | |||||||||||
| do | D | d1 | S | t | H | M | h | C | ||||
| 1/2" | 15.8 | 13.9 | 95.2 | 22.4 | 9.6 | 14.2 | 22.3 | 38.1 | 4 | 15.7 | 66.5 | 0.9 |
| 3/4" | 20.9 | 18.8 | 117.3 | 27.7 | 11.1 | 15.7 | 25.4 | 47.7 | 4 | 19.1 | 82.5 | 1.2 |
| 1" | 26.6 | 24.3 | 123.9 | 34.5 | 12.7 | 17.5 | 26.9 | 53.8 | 4 | 19.1 | 88.9 | 1.4 |
| 1.1/4" | 35.1 | 32.5 | 133.3 | 43.2 | 14.2 | 19.0 | 26.9 | 63.5 | 4 | 19.1 | 98.5 | 1.8 |
| 1.1/2" | 40.9 | 38.1 | 155.4 | 49.5 | 15.7 | 20.6 | 30.2 | 69.8 | 4 | 22.3 | 114.3 | 2.6 |
| 2" | 52.5 | 49.3 | 165.1 | 62.0 | 17.5 | 22.3 | 33.2 | 84.0 | 8 | 19.1 | 127.0 | 3.0 |
| 2.1/2" | 62.7 | 59.0 | 190.5 | 74.7 | 19.0 | 25.4 | 38.1 | 100.0 | 8 | 22.3 | 149.3 | 4.4 |
| 3" | 77.9 | 73.7 | 209.5 | 90.7 | 20.6 | 28.4 | 42.9 | 117.3 | 8 | 22.3 | 168.1 | 6.0 |
| 3.1/2" | 90.1 | 85.5 | 228.6 | 103.4 | 22.3 | 30.2 | 44.4 | 133.3 | 8 | 22.3 | 184.1 | 7.7 |
| 4" | 102.3 | 97.2 | 254.0 | 116.1 | 23.8 | 31.8 | 47.6 | 146.0 | 8 | 22.3 | 200.0 | 10 |
