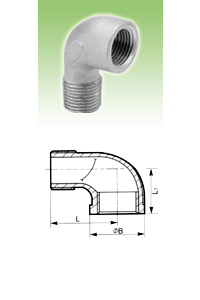

Street Elbow M/F
| SIZE | ØB | L | L1 |
|---|---|---|---|
| 1/8" | 16.2 | 26.0 | 19.0 |
| 1/4" | 21.0 | 28.3 | 19.0 |
| 3/8" | 25.0 | 35.0 | 22.5 |
| 1/2" | 29.0 | 42.0 | 29.0 |
| 314" | 35.0 | 50.5 | 33.0 |
| 1.0 | 43.0 | 52.0 | 38.0 |
| 1-1/4" | 52.0 | 60.0 | 45.0 |
| 1-1/2" | 58.8 | 65.0 | 50.0 |
| 2" | 71.7 | 74.0 | 58.0 |
| 2-1/2" | 86.2 | 99.5 | 68.0 |
| 3" | 98.6 | 115.5 | 78.0 |
| 4" | 121.0 | 146.5 | 97.0 |
| Unit : MM | |||
