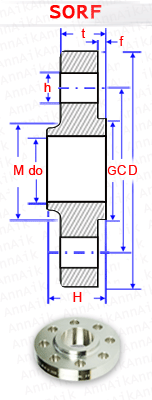

SORF
NOMINAL PIPE SIZE | OUTSIDE DIA.(MM) | DIA. OF BORE (MM) | THICKNESS MIN(MM) | LENGTH THRU HUB (MM) | DIA. AT BASE OF HUB (MM) | O.D. OF RAICED FACE (MM) | NUMBER OF BOLT HOLES | DIA. BOLT OF HOLES (MM) | DIA. OF BOLT CIRCLE (MM) | HEIGHT OF RAISED FACE(MM) | APPROX WEIGHT (KG) |
---|---|---|---|---|---|---|---|---|---|---|---|
D | do | t | H | M | G |
|
h | C | f | ||
1/2" | 120.6 | 22.3 | 22.3 | 31.7 | 38.1 | 35.0 | 4 | 22.3 | 82.5 | 1.8 | |
3/4" | 130.0 | 27.7 | 25.4 | 35.0 | 44.4 | 42.9 | 4 | 22.3 | 88.9 | 2.4 | |
1" | 149.3 | 34.5 | 28.4 | 41.1 | 52.3 | 50.8 | 4 | 25.4 | 101.6 | 3.5 | |
1.1/4" | 158.7 | 43.2 | 28.4 | 41.1 | 63.5 | 63.5 | 4 | 25.4 | 111.2 | 4.0 | |
1.1/2" | 177.8 | 49.5 | 31.7 | 44.5 | 69.8 | 73.1 | 4 | 28.4 | 123.9 | 5.4 | |
2" | 215.9 | 62.0 | 38.1 | 57.1 | 104.6 | 91.9 | 8 | 25.4 | 165.1 | 10 | |
2.1/2" | 244.3 | 74.7 | 41.1 | 63.5 | 123.9 | 104.6 | 8 | 28.4 | 190.5 | 14 | |
3" | 241.3 | 90.7 | 38.1 | 53.8 | 127.0 | 127.0 | 8 | 25.4 | 190.5 | 12 | |
4" | 292.1 | 116.1 | 44.4 | 69.8 | 158.7 | 157.2 | 8 | 31.7 | 2340.9 | 20 | |
5" | 349.2 | 143.8 | 50.8 | 79.2 | 190.5 | 185.6 | 8 | 35.0 | 279.4 | 32 | |
6" | 381.0 | 170.7 | 55.6 | 85.8 | 234.9 | 215.9 | 12 | 31.7 | 317.5 | 42 | |
8" | 469.9 | 221.5 | 63.5 | 101.6 | 298.4 | 269.7 | 12 | 38.1 | 393.7 | 71 | |
10" | 546.1 | 276.3 | 69.8 | 107.9 | 368.3 | 323.8 | 16 | 38.1 | 469.9 | 101 | |
12" | 609.6 | 327.1 | 79.2 | 117.3 | 419.1 | 381.0 | 20 | 38.1 | 533.4 | 133 | |
14′ | 641.3 | 359.1 | 85.8 | 130.0 | 450.8 | 412.7 | 20 | 41.1 | 558.8 | 153 | |
16" | 704.8 | 410.5 | 88.9 | 133.3 | 508.0 | 469.9 | 20 | 44.4 | 615.9 | 185 | |
18" | 787.4 | 461.8 | 101.6 | 152.4 | 565.1 | 533.4 | 20 | 50.8 | 685.8 | 258 | |
20" | 857.2 | 513.1 | 107.9 | 158.7 | 622.3 | 584.2 | 20 | 53.8 | 749.3 | 317 | |
24" | 1041.4 | 615.9 | 139.7 | 203.2 | 749.3 | 692.1 | 20 | 66.5 | 901.7 | 606 |
