SOLJ

PRODUCTS & SERVICES > STEEL > FLANGES > JIS Standard > 10 K > SOLJ

material-composition
NOMINAL PIPE SIZE OUTSIDE DIA.(MM) DIA. OF BOLT CIRCLE (MM) DIA. OF HOLES(MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) DIA. OF HUB AT SMALL END (MM) DIA. OF HUB AT LARGE END (MM) LENGTH THRU. HUB (MM) CHAMFERING (MM) RADIUS OF FILLET (MM) APPROX. WEIGHT (KG.)

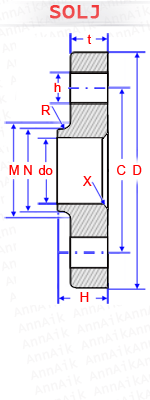

A D C h   do t N M H X R
1/2" 15 95 70 15 4 23.4 12 27 30 16 3 4 0.56
3/4" 20 100 75 15 4 28.9 14 33 36 20 3 4 0.71
1" 25 125 90 19 4 35.6 14 41 44 20 3 4 1.11
1.1/4" 32 135 100 19 4 44.3 16 50 53 22 4 4 1.45
1.1/2" 40 140 105 19 4 50.4 16 56 60 24 4 4 1.53
2" 50 155 120 19 4 62.7 16 69 73 24 4 4 1.83
2.1/2" 65 175 140 19 4 78.7 18 86 91 27 5 4 2.53
3" 80 185 150 19 8 91.6 18 99 105 30 5 4 2.52
3.1/2" 90 195 160 19 8 104.1 18 - - - 5 - 2.66
4" 100 210 175 19 8 116.9 18 127 130 36 5 4 3.02
5" 125 250 210 23 8 143.0 20 154 161 40 6 4 4.60
6" 150 280 240 23 8 168.4 22 182 189 40 6 4 6.14
7" 175 305 265 23 12 - 22 - - - - - -
8" 200 330 290 23 12 219.5 22 - - - 6 6 7.28
9" 225 350 310 23 12 - 22 - - - - 6 -
10" 250 400 355 25 12 271.7 24 288 292 36 6 6 12.3
12" 300 445 400 25 16 322.8 24 340 346 38 9 6 13.2
14′ 350 490 445 27 16 360.2 26 380 386 42 9 6 17.4
16" 400 560 510 27 16 411.2 28 436 442 44 9 6 24.8
18" 450 620 565 27 20 462.3 30 496 502 48 9 6 32.3
20" 500 675 620 33 20 514.4 30 548 554 48 9 6 36.4
22" 550 745 680 33 20 565.2 32 604 610 52 9 6 47.7
24" 600 795 730 33 24 616.0 32 656 662 52 9 6 50.8
