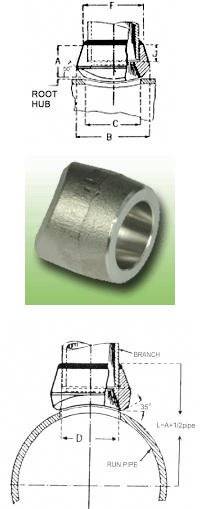

Sockolets
| RUN PIPE SIZE | OUTLET PIPE NPS | A | B | C | D | E | J |
|---|---|---|---|---|---|---|---|
| 36 – 3/8" | 1/8" | 19 | 25.4 | 15.9 | 10.9 | 17.3 | 9.5 |
| 3/8" | 1/4" | 19 | 25.4 | 15.9 | 14.4 | 22.0 | 9.5 |
| 1/2" | 3/8" | 21 | 31.8 | 19.1 | 17.8 | 25.8 | 9.5 |
| 3/4" | 1/2" | 25 | 34.9 | 23.8 | 22.0 | 31.3 | 9.5 |
| 1" | 3/4" | 27 | 44.5 | 30.2 | 27.3 | 37.1 | 12.5 |
| 1-1/4" | 1" | 33 | 54.0 | 36.5 | 34.1 | 45.5 | 12.5 |
| 1-1/2" | 1-1/4" | 33 | 65.1 | 44.5 | 42.8 | 54.9 | 12.5 |
| 2" | 1-1/2" | 35 | 73.1 | 50.8 | 48.9 | 61.6 | 12.5 |
| 2-1/2" | 2" | 38 | 88.9 | 65.1 | 61.4 | 75.3 | 16.0 |
| 3" | 2-1/2" | 46 | 103.2 | 76.2 | 74.2 | 91.7 | 16.0 |
| 4" | 3" | 51 | 122.4 | 93.7 | 90.1 | 109.1 | 16.0 |
| 6" | 4" | 57 | 152.4 | 120.7 | 115.8 | 137.2 | 16.0 |
| Unit : MM | |||||||
