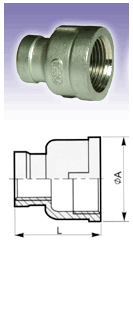

Socket (Coupling) Banded
| SIZE | ØA | L | SIZE | ØA | L | SIZE | ØA | L |
|---|---|---|---|---|---|---|---|---|
| 1/4" x 1/8" | 21.5 | 26 | 1" x 1/2" | 43.4 | 42 | 2" x 1-1/4" | 72 | 56 |
| 3/8" x 1/8" | 25 | 28.3 | 1" x 3/4" | 43 | 42 | 2" x 1-1/2" | 72 | 57 |
| 3/8" x 1/4" | 26 | 29 | 1-1/4" x 1/2" | 52 | 48 | 2-1/2" x 1-1/4" | 86.7 | 60 |
| 1/2" x 1/8" | 29.4 | 34.4 | 1-1/4" x 3/4" | 52 | 48 | 2-1/2" x 1-1/2" | 86.5 | 60 |
| 1/2" x 1/4" | 29 | 34 | 1-1/4" x 1" | 52.5 | 52 | 2-1/2" x 1" | 87 | 60.5 |
| 1/2" x 3/8" | 29 | 34 | 1-1/2" x 3/8" | 59 | 47 | 2-1/2" x 2" | 65.4 | 61 |
| 3/4" x 1/8" | 35.4 | 38 | 1-1/2" x 1/2" | 59 | 52 | 3" x 1" | 100 | 62 |
| 3/4" x 1/4" | 35 | 38 | 1-1/2" x 3/4" | 59 | 52.2 | 3" x 1-1/4" | 99 | 62 |
| 3/4′ x 3/8" | 35.6 | 38 | 1-1/2" x 1" | 59 | 52.4 | 3" x 1-1/2" | 99 | 62 |
| 3/4" x 1/2" | 36.7 | 37 | 1-1/2" x 1-1/4" | 59.4 | 53 | 3" x 2" | 98 | 62 |
| 1" x 1/8" | 42.8 | 42.6 | 2" x 1/2" | 71.3 | 50.5 | 3" x 2-1/2" | 100 | 62 |
| 1" x 1/4" | 43.7 | 42 | 2" x 3/4" | 72 | 51 | 4" x 2-1/2" | 128 | 65 |
| 1" x 3/8" | 43.3 | 42 | 2" x 1" | 71.6 | 56 | 4" x 3" | 128 | 65 |
| Unit : MM | ||||||||
