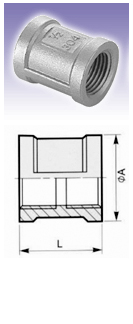

Socket (Coubling) Banded
| SIZE | ØA | L |
|---|---|---|
| 1/8" | 16 | 24 |
| 1/4" | 20 | 26 |
| 3/8" | 25 | 29 |
| 1/2" | 30 | 36 |
| 3/4" | 37.2 | 38 |
| 1" | 44 | 41 |
| 1-1/4" | 52 | 49 |
| 1-1/2" | 60 | 49 |
| 2" | 72 | 55 |
| 2-1/2" | 89 | 61.6 |
| 3" | 104 | 71 |
| 4" | 131 | 84 |
| Unit : MM | ||
