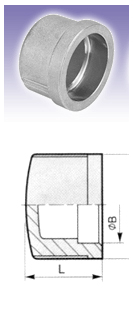

Round Cab Banded Socket Weld
| SIZE | ØA | ØB | L |
|---|---|---|---|
| 1/8" | 18.1 | 11 | 15 |
| 1/4" | 21.1 | 14.4 | 17 |
| 3/8" | 24.8 | 17.8 | 17 |
| 1/2" | 27:5. | 22 | 19 |
| 3/4" | 35.4 | 27.4 | 24 |
| 1′ | 42.1 | 34.1 | 29 |
| 1-114" | 52.6 | 42.9 | 32 |
| 1-1/2" | 57.7 | 48.9 | 34 |
| 2" | 69.9 | 61.4 | 38 |
| 2-1/2" | 92.1 | 74.`1 | 43 |
| 3" | 105.8 | 90.1 | 48 |
| 4" | 134 | 115.7 | 53 |
