PLRF

PRODUCTS & SERVICES > STEEL > FLANGES > JIS Standard > 10 K > PLRF

material-composition

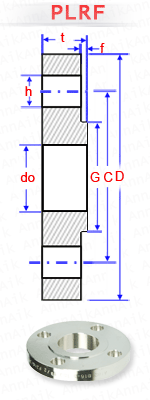

NOMINAL PIPE SIZE OUTSIDE DIA. (MM) DIA. OF BOLT CIRCLE (MM) DIA. OF HOLES (MM) NUMBER OF HOLES DIA. OF BORE (MM) THICKNESS MIN. (MM) DIA. OF RAISED FACE (MM) HEIGHT RAISED FACE (MM) APPROX WEIGHT (KG)
A D C h   do t G

f


3/8" 10 90 65 15 4 17.8 12 46 1 0.26
1/2" 15 95 70 15 4 22.2 12 51 1 0.30
3/4" 20 100 75 15 4 27.7 14 56 1 0.36
1" 25 125 90 19 4 34.5 14 67 1 0.45
1.1/4" 32 135 100 19 4 43.2 16 76 2 0.77
1.1/2" 40 140 105 19 4 49.1 16 81 2 0.82
2" 50 155 120 19 4 61.1 16 96 2 1.06
2.1/2" 65 175 140 19 4 77.1 18 116 2 1.48
3" 80 185 150 19 8 90.0 18 126 2 1.97
3.1/2" 90 195 160 19 8 102.6 18 136 2 2.08
4" 100 210 175 23 8 115.4 18 151 2 2.35
5" 125 250 210 23 8 141.2 20 182 2 3.20
6" 150 280 240 23 8 166.6 22 212 2 4.39
7" 175 305 265 23 12 192.1 22 237 2 5.42
8" 200 330 290 23 12 218.0 22 262 2 6.24
9" 225 350 310 23 12 243.7 22 282 2 6.57
10" 250 400 355 25 12 269.5 24 324 2 9.39
12" 300 445 400 25 16 321.0 24 368 3 10.2
14′ 350 490 445 25 16 358.1 26 413 3 14.0
16" 400 560 510 27 16 409 28 475 3 16.9
18" 450 620 565 27 20 460 30 530 3 21.4
20" 500 675 620 27 20 511 30 585 3 23.0
22" 550 745 680 33 20 562 32 640 3 30.1
24" 600 795 730 33 24 613 32 690 3 32.5
26" 650 845 780 33 24 664 34 740 3 35.6
28" 700 905 840 33 24 715 34 800 3 38.0
30" 750 970 900 33 24 766 36 855 3 48.4
32" 800 1020 950 33 28 817 36 905 3 51.2
34" 850 1070 1000 33 28 868 36 955 3 53.9
36" 900 1120 1050 33 28 919 38 1005 3 60.7
40" 1000 1235 1160 39 28 1021 40 1110 3 70.1
44" 1100 1345 1270 39 28 1122 42 1220 3 81.6
48" 1200 1465 1380 39 32 1224 44 1325 3 101
54" 1350 1630 1540 45 36 1376 48 1480 3 116
60" 1500 1795 1700 45 40 1529 50 1635 3 137
