High Pressure Needle Valve
| FEATURE |
|---|
| Working Pressure : 6000 PSI |
| Size : 1/4″~1″ (DN8~DN25) |
| Reduced Bore |
| Threaded End : NPT, BSPT, BSPF, DIN 2999 |

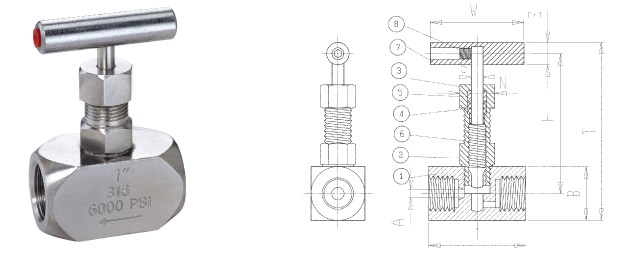

| ITEM | PARTS NAME | MATERIAL | Q’TY | |
|---|---|---|---|---|
| STAINLESS STEEL | CARBON STEEL | |||
| 1 | Body | SS316 | Carbon Steel | 1 |
| 2 | Bonnet | SS316 | Carbon Steel | 1 |
| 3 | Packing Nut | SS316 | Carbon Steel | 1 |
| 4 | Packing | PTFE | PTFE | 1 |
| 5 | Gland | SS316 | SS316 | 1 |
| 6 | Stem | SS316 | SS316 | 1 |
| 7 | Handle | SS410 | SS410 | 1 |
| 8 | Fixing Acrew | Alloy Steel | Alloy Steel | 1 |
| DIMENSION | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM | A | B | C | D | E | T | S | N | NT(KGS) | ||||||||||
| Size | NPS | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch |
| 1/4″ | DN8 | 3 | 0.118 | 45 | 1.772 | 70 | 2.756 | 60 | 2.362 | 22 | 0.866 | 80 | 3.150 | 7 | 0.276 | 21 | 0.827 | 0.36 | 0.014 |
| 3/8″ | DN10 | 3 | 0.118 | 50 | 1.969 | 73 | 2.874 | 60 | 2.362 | 25 | 0.984 | 85 | 3.346 | 7 | 0.276 | 21 | 0.827 | 0.43 | 0.017 |
| 1/2″ | DN15 | 4 | 0.157 | 60 | 2.362 | 95 | 3.740 | 65 | 2.559 | 30 | 1.181 | 110 | 4.331 | 8 | 0.315 | 24 | 0.945 | 0.55 | 0.022 |
| 3/4″ | DN20 | 5 | 0.197 | 65 | 2.559 | 100 | 3.937 | 65 | 2.559 | 35 | 1.378 | 115 | 4.528 | 8 | 0.315 | 24 | 0.945 | 0.65 | 0.026 |
| 1″ | DN25 | 7 | 0.276 | 83 | 3.268 | 105 | 4.134 | 80 | 3.150 | 46 | 1.811 | 129 | 5.079 | 10 | 0.394 | 30 | 1.181 | 1.35 | 0.053 |
