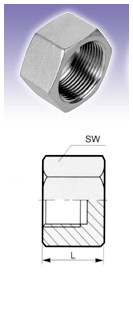

Hexagon Cap
| SIZE | L | SW | WEIGHT |
|---|---|---|---|
| 1/8 | 13 | 15 | 0.012 |
| 1/4" | 17 | 18 | 0.021 |
| 3/8" | 19 | 21 | 0.32 |
| 1/2" | 20 | 27 | 0.058 |
| 314" | 24 | 30 | 0.067 |
| 1. | 25 | 38 | 0.116 |
| 1-1/4" | 28 | 50 | 0.231 |
| 1-1/2" | 28 | 55 | 0.254 |
| 2" | 34 | 70 | 0.506 |
| 2-1/2" | 40 | 92 | 1.207 |
| 3" | 45 | 109 | 1.925 |
| 4" | 50 | 132 | 2.693 |
| Unit : mm | |||
