Globe Valves

PRODUCTS & SERVICES > STEEL > VALVES > Globe Valves

Category

FEATURE
Rating : ANSI 150/300, PN16, JIS 10K/20K
Size : 1/2″~12″
Bolted Bonnet, Outside Screw and Yoke, Swivel Disc, Rising Stem and Handweel
Special Alloy is also available upon request.
ITEM PARTS NAME MATERIAL
STAINLESS STEEL CARBON STEEL
1 Body A351-CF8M/CF8 A216-WCB
2 Bonnet A351-CF8M/CF8 A216-WCB
3 Stem SS316 SS410
4 Disc A351-CF8M/CF8 A216-WCB
5 Gland Flange A351-CF8M/CF8 A216-WCB
6 Gland Packing PTFE (Optional:Graphite) PTFE(Optional:Graphite)
7 Handwheel Ductile Iron Ductile Iron
8 Body / Bonnet Gasket PTFE PTFE
9 Body / Bonnet Bolting ASTM A193 B8/A194 8 ASTM A193 B7/A194 2H
10 Gland Bolt / Nut ASTM A193 B8/A194 8 ASTM A576 1045/A194 2H
11 Yoke Sleeve Bronze / Ductile Iron Bronze / Ductile Iron

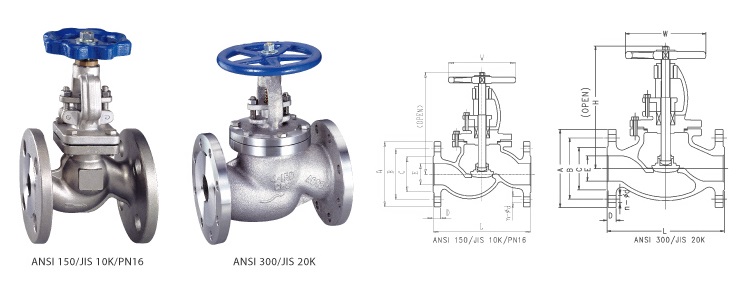

DIMENSION ANSI 150-CS
ITEM H W L A B C D NØ-D
SIZE NPS
1/2″ DN15 185 90 108 89 60.5 35 11.2 4-16
3/4″ DN20 195 100 117 98 70.0 43 11.2 4-16
1″ DN25 205 100 127 108 79.5 51 11.2 4-16
1-1/2″ DN40 240 140 165 127 98.5 73 14.3 4-16
2″ DN50 250 160 203 152 120.5 92 15.9 4-19
2-1/2″ DN65 270 180 216 178 139.5 105 17.5 4-19
3″ DN80 290 200 241 190 152.5 127 19.1 4-19
4″ DN100 350 225 202 229 190.5 157 23.9 8-19
5″ DN125 410 250 356 254 216.0 186 23.9 8-22
6″ DN150 520 300 406 279 241.5 216 25.4 8-22
8″ DN200 570 350 495 343 298.5 270 28.6 8-22
10″ DN250 670 400 622 406 362.0 324 30.2 12-25
12″ DN300 736 500 698 483 482.0 381 31.8 12-25
14″ DN350 966 640 787 533 476.0 413 35.0 12-29
16″ DN400 1085 460 914 597 540.0 470 37.0 16-29
18″ DN450 1225 460 978 635 578.0 533 40.0 16-32
20″ DN500 1375 560 978 699 635.0 584 43.0 20-32
24″ DN600 1525 560 1295 813 749.5 692 48.0 20-35

* Unit : mm
