Globe Valve
| FEATURE |
|---|
| Working Pressure : 200 PSI |
| Size : 1/2″~2″ |
| Threaded End : NPT, BSPT, BSPF, DIN 2999 |
| ITEM | PARTS NAME | MATERIAL |
|---|---|---|
| 1 | Body | A351-CF8M |
| 2 | Bonnet | A351-CF8M |
| 3 | Stem | SS316 |
| 4 | Disc | A351-CF8M |
| 5 | Gasket | PTFE |
| 6 | Packing | PTFE |
| 7 | Cap Nut | A351-CF8M |
| 8 | Gland | SS316 |
| 9 | Handle | ZDC2; ADC12 |
| 10 | Stem Nut | SS304 |

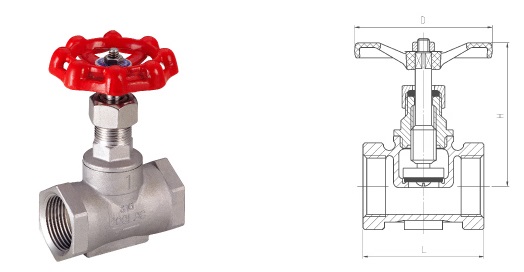

| DIMENSION | ||||
|---|---|---|---|---|
| ITEM | L | H | D | |
| SIZE | NPS | |||
| 1/2″ | DN15 | 63 | 106 | 62 |
| 3/4″ | DN20 | 70 | 106 | 62 |
| 1″ | DN25 | 77 | 116 | 75 |
| 1-1/4″ | DN32 | 87 | 122 | 75 |
| 1-1/2″ | DN40 | 100 | 144 | 95 |
| 2″ | DN50 | 110 | 145 | 95 |
* Unit : mm
