Gate Valves

PRODUCTS & SERVICES > STEEL > VALVES > Gate Valves

Category



FEATURE

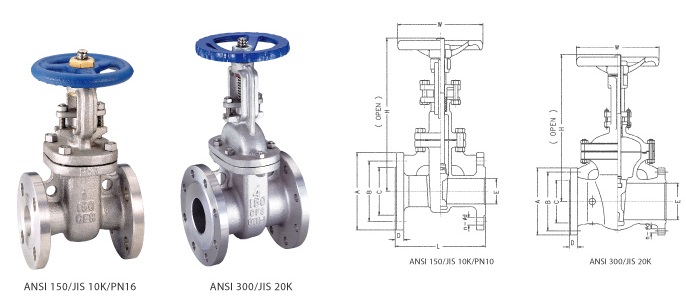

Rating : ANSI 150/300, PN16, JIS 10K/20K
Size : 1/2″~12″
Bolted Bonnet, Outside Screw and Yoke, Flexible Wedge, Rising Stem
Special Alloy is also available upon request.
ITEM PARTS NAME MATERIAL
STAINLESS STEEL CARBON STEEL
1 Body A351-CF8M/CF8 A216-WCB
2 Bonnet A351-CF8M/CF8 A216-WCB
3 Stem SS316 SS410
4 Disc A351-CF8M/CF8 A216-WCB
5 Gland Flange A351-CF8M/CF8 A216-WCB
6 Gland Packing PTFE (Optional:Graphite) PTFE(Optional:Graphite)
7 Handwheel Ductile Iron Ductile Iron
8 Body / Bonnet Gasket PTFE (Optional:Graphite) PTFE (Optional:Graphite)
9 Body / Bonnet Bolting ASTM A193 B8/A194 8 ASTM A193 B7/A194 2H
10 Gland Bolt / Nut ASTM A193 B8/A194 8 ASTM A576 1045/A194 2H
11 Yoke Sleeve Bronze / Ductile Iron Bronze / Ductile Iron
DIMENSION ANSI 150-SS
ITEM H W L A B C D NØ-D
SIZE NPS
1/2″ DN15 190 90 108 89 60.5 35 11.2 4-16
3/4″ DN20 200 90 117 98 70.0 43 11.2 4-16
1″ DN25 230 100 127 108 79.5 51 11.2 4-16
1-1/4″ DN32 270 140 140 117 89.0 64 14.3 4-16
1-1/2″ DN40 280 140 165 127 98.5 73 14.3 4-16
2″ DN50 320 160 178 152 120.5 92 15.9 4-19
2-1/2″ DN65 390 180 190 178 139.5 105 17.5 4-19
3″ DN80 415 200 203 190 152.5 127 19.1 4-19
4″ DN100 510 225 229 229 190.5 157 23.9 8-19
5″ DN125 600 250 254 254 216.0 186 23.9 8-22
6″ DN150 710 290 267 279 241.5 216 25.4 8-22
8″ DN200 900 330 292 343 298.5 270 28.6 8-22
10″ DN250 1117 350 330 406 362.0 324 30.2 12-25
12″ DN300 1324 400 356 483 432.0 381 31.8 12-25
14″ DN350 1480 550 381 533 476.5 413 35.0 12-29
16″ DN400 1658 600 406 597 539.7 470 36.6 16.29

* Unit : mm
