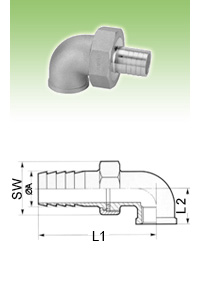

Flat Seat With Gasket F/H
| SIZE | L1 | L2 | ØA | SW |
|---|---|---|---|---|
| 1/8″ | 52.0 | 19.0 | 6.5 | 25.0 |
| 1/4″ | 56.0 | 21.0 | 9.0 | 30.0 |
| 3/8″ | 67.0 | 25.0 | 11.0 | 35.0 |
| 1/2″ | 77.5 | 28.0 | 14.0 | 42.0 |
| 3/4″ | 82.0 | 33.0 | 20.5 | 47.0 |
| 1″ | 88.0 | 38.0 | 27.0 | 53.0 |
| 1-1/4″ | 101.7 | 45.0 | 33.0 | 71.0 |
| 1-1/2″ | 119.5 | 50.0 | 39.5 | 77.0 |
| 2″ | 130.4 | 58.0 | 52.0 | 92.0 |
| Unit : MM | ||||
