Flanged End Ball Valves

PRODUCTS & SERVICES > STEEL > VALVES > Flanged End Ball Valves

Category



FEATURE
Rating : ANSI # 150
Size : 1/2″~8″(DN15~DN200)
Full Bore
Flange End
ISO 5211 Mounting Pad
Anti-Static Device
Blow-Out-Proof Stem
*Fire Safe design to API 607 4th Edition Special Alloy is also available upon request

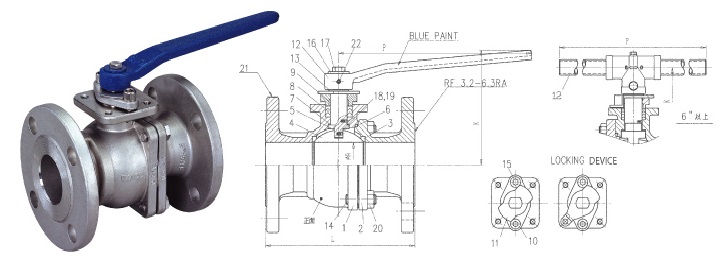

ITEM PARTS NAME MATERIAL
STAINLESS STEEL CARBON STEEL
1 Body A351-CF8M A216-WCB
2 Cap A351-CF8M A216-WCB
3 Seat PTFE+15%G.F. PTFE+15%G.F.
4 Ball A351-CF8M / SUS 316 A351-CF8 / SUS 304
5 Stem SUS 316 SUS 304
*6 Join Gasket PTFE / *GRAPHITE PTFE / *GRAPHITE
7 Gasket PTFE PTFE
*8 Seal PTFE / *GRAPHITE PTFE / *GRAPHITE
9 Gland Bush PTFE PTFE
10 Gland Flange A351-CF8 A351-CF8
11 Stopper SUS 304 SUS 304
12 Handle / Pipe DUCTILE IRON / STEEL+Zn plated DUCTILE IRON / STEEL+Zn plated
13 Snap Ring STEEL STEEL
14A Bolt A193-B8 A193-B8
14B Stud (for 5″~8″) A193-B8M A193-B8M
15 Gland Bolt SUS 304 SUS 304
16 Flat Washer STFEL STFEL
17 Bolt STFEL STFEL
18 Static Device SUS 304 SUS 304
19 Spring SUS 304 SUS 304
20 Nut (for 5″~8″) A194-8M A194-2H
21 Tag SUS 304 SUS 304
22 Socket Screw STEEL STEEL
DIMENSION
ITEM A E L P K
Size NPS mm inch mm inch mm inch mm inch mm inch
1/2″ DN15 16 0.630 48.35 1.904 108 4.252 135 5.315 78.8 3.102
3/4″ DN20 20 0.787 55.45 2.183 117 4.606 135 5.315 83.3 3.280
1″ DN25 25 0.984 66.10 2.602 127 5.000 160 6.299 95.1 3.744
1-1/2″ DN40 38 1.496 81.30 3.201 165 6.496 230 9.055 121.6 4.787
2″ DN50 50 1.969 82.90 3.264 178 7.008 230 9.055 129.9 5.114
2-1/2″ DN65 65 2.559 93.10 3.665 190 7.480 230 9.055 140.7 5.539
3″ DN80 80 3.150 85.30 3.358 203 7.992 350 13.780 148.8 5.858
4″ DN100 100 3.937 98.40 3.874 229 9.016 400 15.748 175.6 6.913
5″ DN125 127 5.000 178.00 7.008 356 14.016 400 15.748 206.2 8.118
6″ DN150 152 5.984 197.00 7.756 394 15.512 800 31.496 268.5 10.571
8″ DN200 203 7.992 228.50 8.996 457 17.992 1100 43.307 340.0 13.386
