Elbows

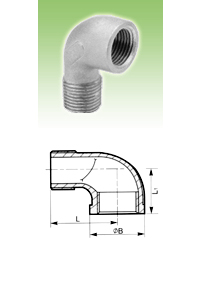

Street Elbow M/F

SIZE ØB L L1
1/8" 16.2 26.0 19.0
1/4" 21.0 28.3 19.0
3/8" 25.0 35.0 22.5
1/2" 29.0 42.0 29.0
314" 35.0 50.5 33.0
1.0 43.0 52.0 38.0
1-1/4" 52.0 60.0 45.0
1-1/2" 58.8 65.0 50.0
2" 71.7 74.0 58.0
2-1/2" 86.2 99.5 68.0
3" 98.6 115.5 78.0
4" 121.0 146.5 97.0
Unit : MM
