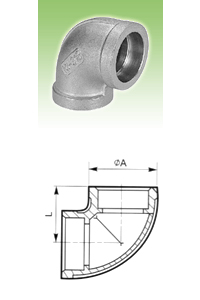

Elbow 90 Equal Banded Socket Weld F/F
| SIZE | ØA | ØB | L |
|---|---|---|---|
| 1/8" | 18.0 | 11.0 | 18.0 |
| 1/4" | 21.0 | 14.4 | 18.00 |
| 3/8" | 25.0 | 17.8 | 20.0 |
| 112" | 29.5 | 22.0 | 22.0 |
| 3/4" | 35.6 | 27.4 | 25.0 |
| 1 | 43.0 | 34.1 | 28.0 |
| 1-1/4" | 52.4 | 42.9 | 33.0 |
| 1-1/2" | 58.0 | 48.9 | 36.0 |
| 2" | 72.0 | 61.4 | 43.0 |
| 2-1/2 " |
87.0 ‘ | 74.1 | 50.0 |
| 3" | 99.0 | 90.1 | 55.0 |
| 4" | 125.5 | 115.7 | 64.0 |
| Unit : MM | |||
