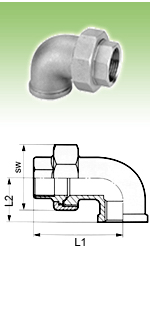

Conical Joint F/F
| SIZE | L1 | L2 | SW |
|---|---|---|---|
| 1/8" | 39.0 | 19.0 | 25.0 |
| 1/4" | 46.2 | 21.0 | 30.0 |
| 3/8" | 49.0 | 25.0 | 35.0 |
| 1/2" | 56.0 | 28.0 | 42.0 |
| 3/4" | 62.7 | 33.0 | 47.0 |
| 1" | 68.0 | 38.0 | 53.0 |
| 1-1/4" | 79.5 | 45.0 | 71.0 |
| 1-1/2" | 88.0 | 50.0 | 77.0 |
| 2" | 93.8 | 58.0 | 92.0 |
| Unit : MM | |||
