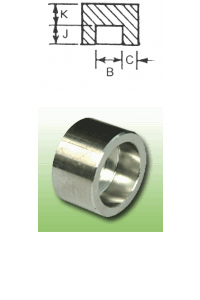

Caps
| DN | NOM. PIPE SIZE | SOCKET BORE DIA (MAX-MIN) | SOCKET WALL THICKNESS | DEPTH OF SOCKET MIN. | END WALL THICKNESS MIN. | |
|---|---|---|---|---|---|---|
| AVE. | MIN. | |||||
| B | C | J | K | |||
| 6 | 1/8" | 11.2-10.8 | 3.18 | 3.18 | 9.5 | 4.8 |
| 8 | 1/4" | 14.6-14.2 | 3.78 | 3.30 | 9.5 | 4.8 |
| 10 | 3/8" | 18.0-17.6 | 4.01 | 3.50 | 9.5 | 4.8 |
| 15 | 1/2" | 22.2-21.8 | 4.67 | 4.09 | 9.5 | 6.4 |
| 20 | 3/4" | 27.6-27.2 | 4.90 | 4.27 | 12.5 | 6.4 |
| 25 | 1" | 34.3-33.9 | 5.69 | 4.98 | 12.5 | 9.6 |
| 32 | 1-1/4" | 43.1-42.7 | 6.07 | 5.28 | 12.5 | 9.6 |
| 40 | 1-1/2" | 49.2-48.8 | 6.35 | 5.54 | 12.5 | 11.2 |
| 50 | 2" | 61.7-61.2 | 6.93 | 6.04 | 16.0 | 12.7 |
| 65 | 2-1/2" | 74.4-73.9 | 8.76 | 7.67 | 16.0 | 15.7 |
| 80 | 3 | 90.3-89.8 | 9.52 | 8.30 | 16.0 | 19.0 |
| 100 | 4" | 115.7-115.2 | 10.69 | 9.35 | 19.0 | 22.4 |
| Unit : MM | ||||||
