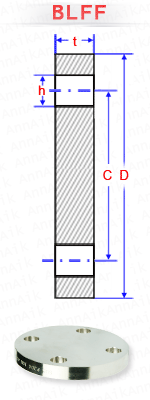

BLFF
| NOMINAL PIPE SIZE | OUTSIDE DIA.(MM) | THICKNESS MIN (MM) | NUMBER OF BOLT HOLES | DIA. OF HOLES(MM) | DIA. OF BOLT CIRCLE (MM) | APPROX WEIGHT(KG) |
|---|---|---|---|---|---|---|
| D | t | h | C | |||
| 1/2" | 120.6 | 22.3 | 4 | 22.3 | 82.5 | 1.8 |
| 3/4" | 130.1 | 25.4 | 4 | 22.3 | 88.9 | 2.5 |
| 1" | 149.3 | 28.4 | 4 | 25.4 | 101.6 | 3.6 |
| 1.1/4" | 158.7 | 28.4 | 4 | 25.4 | 111.1 | 4.2 |
| 1.1/2" | 177.8 | 31.7 | 4 | 28.4 | 123.8 | 5.8 |
| 2" | 215.9 | 38.1 | 8 | 25.4 | 165.1 | 11 |
| 2.1/2" | 244.3 | 41.1 | 8 | 28.4 | 190.5 | 14 |
| 3" | 266.7 | 47.7 | 8 | 31.7 | 203.2 | 20 |
| 4" | 311.1 | 53.8 | 8 | 35.0 | 241.3 | 30 |
| 5" | 374.6 | 73.1 | 8 | 41.1 | 292.1 | 59 |
| 6" | 393.7 | 82.5 | 12 | 38.1 | 317.5 | 72 |
| 8" | 482.6 | 91.9 | 12 | 44.4 | 393.7 | 122 |
| 10" | 584.2 | 107.9 | 12 | 50.8 | 482.6 | 210 |
| 12" | 673.1 | 123.9 | 16 | 53.8 | 571.5 | 316 |
| 14′ | 749.3 | 133.0 | 16 | 60.4 | 635.0 | 420 |
| 16" | 825.5 | 146.0 | 16 | 66.5 | 704.8 | 560 |
| 18" | 914.4 | 162.0 | 16 | 73.1 | 774.7 | 760 |
| 20" | 984.2 | 177.8 | 16 | 79.2 | 831.8 | 965 |
| 24" | 1168.4 | 203.2 | 16 | 91.9 | 990.6 | 1558 |
