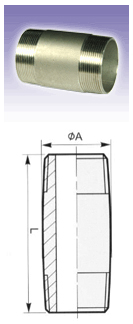

Barrel Nipple From Pipe
| SIZE | ØA | L |
|---|---|---|
| 1/8" | 10.2 | 40 |
| 1/4" | 13.5 | 40 |
| 3/8" | 17.2 | 40 |
| 1/2" | 21.3 | 60 |
| 3/4" | 26.9 | 60 |
| 1" | 33.7 | 60 |
| 1-1/4" | 42.4 | 80 |
| 1-1/2" | 48.3 | 80 |
| 2" | 60.3 | 100 |
| 2-1/2" | 76.1 | 120 |
| 3" | 88.9 | 120 |
| 4" | 114.3 | 150 |
| Unit : MM | ||
