Ball Valves
| FEATURE | |
|---|---|
| Working Pressure | 1000 PSI |
| Size | 1/4″~2″(DN8~DN50) |
| Full Bore Ends | Threaded NPT, BSPT, BSPF, DIN 2999 Butt-Weld End, Socket Weld End |
| Anti-Static Device | |
| ISO 5211 Mounting Pad | |
| Optional | Locking Handle Ball Seat Cavity Filler |

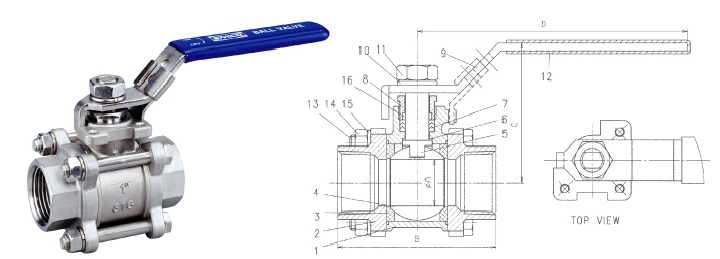

| ITEM | PARTS NAME | MATERIAL | |
|---|---|---|---|
| STAINLESS STEEL | CARBON STEEL | ||
| 1 | Body | A351-CF8M | A216-WCB |
| 2 | End Cap | A351-CF8M | A216-WCB |
| 3 | Seat | PTFE+15%G.F. | PTFE+15%G.F. |
| 4 | Ball | A351-CF8M / SUS 316 | A351-CF8 / SUS 304 |
| 5 | Stem | SUS 316 | SUS 304 |
| 6 | Gasket | PTFE | PTFE |
| 7 | Seal | PTFE | PTFE |
| 8 | Packing Gland | SUS 304 | SUS 304 |
| 9 | Handle | SUS 304 | SUS 304 |
| 10 | Lever Spring Washer | SUS 304 | SUS 304 |
| 11 | Lever Nut | SUS 304 | SUS 304 |
| 12 | Plastic Coating | VINYL | VINYL |
| 13 | Bolt | SUS 304 | SUS 304 |
| 14 | Bolt Nut | SUS 304 | SUS 304 |
| 15 | Spring Washer | SUS 304 | SUS 304 |
| 16 | Gland Bush | PTFE | PTFE |
| DIMENSION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ITEM | A | B | C | D | |||||
| Size | NPS | mm | inch | mm | inch | mm | inch | mm | inch |
| 1/4″ | DN8 | 10.0 | 0.394 | 55 | 2.165 | 46.5 | 1.831 | 103 | 4.055 |
| 3/8″ | DN10 | 12.5 | 0.492 | 55 | 2.165 | 46.5 | 1.831 | 103 | 4.055 |
| 1/2″ | DN15 | 15.0 | 0.591 | 65 | 2.559 | 49.0 | 1.929 | 103 | 4.055 |
| 3/4″ | DN20 | 20.0 | 0.787 | 75 | 2.953 | 58.2 | 2.291 | 109 | 4.291 |
| 1″ | DN25 | 24.5 | 0.965 | 85 | 3.346 | 68.6 | 2.701 | 145 | 5.709 |
| 1-1/4″ | DN32 | 32.0 | 1.260 | 100 | 3.937 | 74.1 | 2.917 | 145 | 5.709 |
| 1-1/2″ | DN40 | 38.0 | 1.496 | 110 | 4.331 | 81.6 | 3.213 | 180 | 7.087 |
| 2″ | DN50 | 50.0 | 1.969 | 130 | 5.118 | 91.0 | 3.583 | 180 | 7.087 |
