2635 WNRF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN40 > 2635 WNRF

material-composition
NOMINAL BORES OUTSIDE DIA. DIA. OF BORE OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE(MM) LENGTH THRU HUB (MM) THICKNESS OF NECK (MM) RADIUS OF FILLET (MM) LENGTH OF NECK (MM) DIA. OF RAISED FACE (MM) THICKNESS OF RAISED FACE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM) APPROX. WEIGHT (KG.)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1

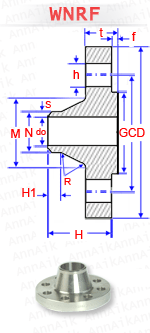

    do D t C H S R H1 G f   h
10 17.2 13.6 90 16 60 35 1.8 4 6 40 2 4 14 0.66
14 10.4
15 21.3 17.3 95 16 65 38 2 4 6 45 2 4 14 0.75
20 16.0
20 26.9 22.3 105 18 75 40 2.3 4 6 58 2 4 14 1.06
25 20.4
25 33.7 28.5 115 18 85 40 2.6 4 6 68 2 4 14 1.29
30 24.8
32 42.4 37.2 140 18 100 42 2.6 6 6 78 2 4 18 1.88
38 32.8
40 48.3 43.1 150 18 110 45 2.6 6 7 88 3 4 18 2.33
44.5 39.3
50 60.3 54.5 165 20 125 48 2.9 6 8 102 3 4 18 2.82
57 51.2
65 76.1 70.3 185 22 145 52 2.9 6 10 122 3 8 18 3.74
- -
80 88.9 82.5 200 24 160 58 3.2 8 12 138 3 8 18 4.75
- -
100 114.3 107.1 235 24 190 65 3.6 8 12 162 3 8 22 6.52
108 100.8
125 139.7 131.7 270 26 220 68 4 8 12 188 3 8 26 9.07
133 125
150 168.3 159.3 300 28 250 75 4.5 10 12 218 3 8 26 11.8
159 150
200 219.1 206.5 375 34 320 88 6.3 10 16 285 3 12 30 21.5
- -
250 273 258.8 450 38 385 105 7.1 12 18 345 3 12 33 34.9
267 252.8
300 323.9 307.9



 515 42 450 115 8 12 18 410 4 16 33 49.7
- -
350 355.6 338 580 46 510 125 8.8 12 20 465 4 16 36 68.1
368 350.4
400 406.4 384.4 660 50 585 135 11 12 20 535 4 16 39 96.5
419 397
500 508 479.6 755 52 670 140 14.2 12 20 615 4 20 42 117
