2634 WNRF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN25 > 2634 WNRF

material-composition

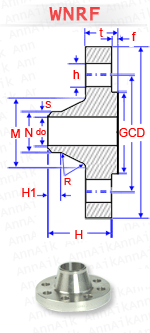

NOMINAL BORES OUTSIDE DIA. DIA. OF BORE OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE (MM) LENGTH THRU HUB (MM) THICKNESS OF NECK (MM) RADIUS OF FILLET (MM) LENGTH OF NECK (MM) DIA. OF RAISED FACE (MM) THICKNESS OF RAISED FACE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM) APPROX. WEIGHT (KG.)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1
    do D t C H S R H1 G f   h
10 17.2 13.6 90 16 60 35 1.8 4 6 40 2 4 1 4 0. 661
14 10.4
15 21.3 17.3 95 1 6 65 3 8 2 4 6 4 5 2 4 1 4 0. 746
20 16.0
20 26.9 22.3 105 1 8 75 40 2.3 4 6 5 8 2 4 1 4 1.06
25 20.4
25 33.7 28.5 1 15 1 8 85 40 2.6 4 6 68 2 4 1 4 1.29
30 24.8
32 42.4 37.2 1 40 1 8 100 42 2.6 6 6 78 2 4 1 8 1. 88
38 39.3
40 48.3 43.1 1 50 1 8 1 10 45 2.6 6 7 8 8 3 4 1 8 2.33
44.5 39.3
50 60.3 54.5 1 65 20 1 25 48 2.9 6 8 102 3 4 1 8 2.82
57 51.2
65 76.1 70.3 1 85 22 1 45 52 2.9 6 10 1 22 3 8 1 8 3.74
- -
80 88.9 82.5 200 24 1 60 58 3.2 8 1 2 1 38 3 8 18 4.75
- -
100 114.3 1 07.1 2 35 24 1 90 65 3.6 8 1 2 1 62 3 8 22 6.52
108 1 00.8
125 139.7 1 31.7 2 70 26 2 20 68 4 8 1 2 1 88 3 8 26 9.07
133 1 25
150 168.3 1 59.3 300 28 2 50 75 4.5 10 12 2 18 3 8 26 11.8
159 1 50
200 219.1 2 06.5 3 60 30 310 80 6.3 10 1 6 278 3 12 26 17.0
- -
250 273 2 58.8 425 32 3 70 88 7.1 12 1 8 3 35 3 12 30 24.4
267 2 52.8
300 323.9 3 07.9 485 34 430 92 8 12 1 8 3 95 4 1 6 30 31.2
- -
350 355.6 339.6 555 38 490 100 8 12 20 4 50 4 1 6 33 47.2/44.2
368 3 52
400 406.4 388.8 620 40 550 110 8.8 12 20 505 4 16 36 61.7/57.9
419 4 01.4
500 508 488 730 44 6 60 125 10 12 20 615 4 20 36 89.6
- -
600 610 588 845 46 770 125 11 12 20 720 5 20 39 104
- -
700 711 686 960 46 875 125 12.5 20 24 820 5 24 42 136
-
800 813 784.6 1085 50 990 135 14.2 22 24 930 5 24 48 186
- -
900 914 882 1 185 54 1090 145 16.0 24 28 1030 5 2 8 48 236
- -
1000 1016 981 1 320 58 1210 155 17.5 24 28 1 140 5 28 56 307
