2634 WNFF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN25 > 2634 WNFF

material-composition

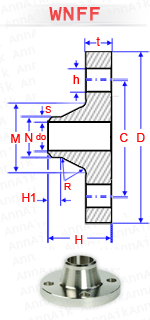

NOMINAL BORES OUTSIDE DIA. DIA. OF BORE OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OFBOLT CIRCLE (MM) LENGTH THRU HUB (MM) THICKNESS OF NECK (MM) RADIUS OF FILLET (MM) LENGTH OF NECK (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM) APPROX. WEIGHT (KG)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1
    do D t C H S R H1   h
10 17.2 13.6 90 16 60 35 1.8 4 6 4 14 0.661
14 10.4
15 21.3 17.3 95 16 65 38 2 4 6 4 14 0.746
20 16.0
20 26.9 22.3 105 18 75 40 2.3 4 6 4 14 1.06
25 20.4
25 33.7 28.5 115 18 85 40 2.6 4 6 4 14 1.29
30 24.8
32 42.4 37.2 140 18 100 42 2.6 6 6 4 18 1.88
38 32.8
40 48.3 43.1 150 18 110 45 2.6 6 7 4 18 2.33
44.5 39.3
50 60.3 54.5 165 20 125 48 2.9 6 8 4 18 2.82
57 51.2
65 76.1 70.3 185 22 145 52 2.9 6 10 8 18 3.74
- -
80 88.9 82.5 200 24 160 58 3.2 8 12 8 18 4.75
- -
100 114.3 107.1 235 24 190 65 3.6 8 12 8 22 6.52
108 100.8
125 139.7 131.7 270 26 220 68 4 8 12 8 26 9.07
133 125
150 168.3 159.3 300 28 250 75 4.5 10 12 8 26 11.8
159 150
200 219.1 206.5 360 30 310 80 6.3 10 16 12 26 17.0
- -
250 273 258.8 425 32 370 88 7.1 12 18 12 30 24.4
267 252.8
300 323.9 307.9 485 34 430 92 8 12 18 16 30 31.2
- -
350 355.6 339.6 555 38 490 100 8 12 20 16 33 47.2/44.2
368 352
400 406.4 388.8 620 40 550 110 8.8 12 20 16 36 61.7/57.9
419 401.4
500 508 488 730 44 660 125 10 12 20 20 36 89.6
- -
600 610 588 845 46 770 125 11 12 20 20 39 104
- -
700 711 686 960 46 875 125 12.5 20 24 24 42 136
-
800 813 784.6 1085 50 990 135 14.2 22 24 24 48 186
- -
900 914 882 1185 54 1090 145 16.0 24 28 28 48 236
- -
1000 1016 981 1320 58 1210 155 17.5 24 28 28 56 307
