2633 WNRF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN16 > 2633 WNRF

material-composition
NOMINAL BORES OUTSIDE DIA. DIA. OF BORE OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE(MM) LENGTH THRU HUB (MM) THICKNESS OF NECK (MM) RADIUS OF FILLET (MM) LENGTH OF NECK (MM) DIA. OF RAISED FACE (MM) THICKNESS OF RAISED FACE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM) APPROX. WEIGHT (KG.)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1

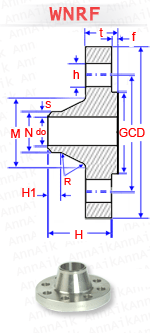

    do D t C H S R H1 G f   h
10 17.2 13.6 90 14 60 35 1.8 4 6 40 2 4 14 0.580
14 10.4
15 21.3 17.3 95 14 65 35 2 4 6 45 2 4 14 0.648
20 16
20 26.9 22.3 105 16 75 38 2.3 4 6 58 2 4 14 0.952
25 20.4
25 33.7 28.5 115 16 85 38 2.6 4 6 68 2 4 14 1.14
30 24.8
32 42.4 37.2 140 16 100 40 2.6 6 6 78 2 4 18 1.69
38 32.8
40 48.3 43.1 150 16 110 42 2.6 6 7 88 3 4 18 1.86
44.5 39.3
50 60.3 54.4 165 18 125 45 2.9 6 8 102 3 4 18 2.53
57 51.2
65 76.1 70.3 185 18 145 45 2.9 6 10 122 3 4 18 3.06
- -
80 88.9 82.5 200 20 160 50 3.2 8 10 138 3 8 18 3.70
- -
100 114.3 107.1 220 20 180 52 3.6 8 12 158 3 8 18 4.62
108 100.8
125 139.7 131.7 250 22 210 55 4 8 12 188 3 8 18 6.30
133 125
150 168.3 159.3 285 22 240 55 4.5 10 12 212 3 8 22 7.75
159 150
200 219.1 207.3 340 24 295 62 5.9 10 16 268 3 12 22 11.0
- -
250 273 260.4 405 26 355 70 6.3 12 16 320 3 12 26 15.6
267 254.4
300 323.9 309.7 460 28 410 78 7.1 12 16 378 4 12 26 22.0
- -
350 355.6 339.6 520 30 470 82 8 12 16 438 4 16 26 31.2/28.8
368 352
400 406.4 390.4 580 32 525 85 8 12 16 490 4 16 30 36.3/39.3
419 403
500 508 492 715 34 650 90 8 12 16 610 4 20 33 61.0
- -
600 610 592.4 840 36 770 95 8.8 12 18 725 5 20 36 75.4
- -
700 711 693.4 910 36 840 100 8.8 12 18 795 5 24 36 77.0
-
800 813 793 1025 38 950 105 10 12 20 900 5 24 39 101
- -
900 914 894 1125 40 1050 110 10 12 20 1000 5 28 39 122
- -
1000 1016 996 1255 42 1170 120 10 16 22 1115 5 28 42 162
- -
1200 1220 1195 1485 48 1390 130 12.5 16 30 1330 5 32 48 243
- -
1400 1420 1391.6 1685 52 1590 145 14.2 16 30 1530 5 36 48 323
- -
1600 1620 1588 1930 58 1820 160 16 16 35 1750 5 40 54 479
- -
1800 1820 1785 2130 62 2020 170 17.5 16 35 1950 5 44 56 599
- -
2000 2020 1980 2345 66 2230 180 20 16 40 2150 5 48 62 719
