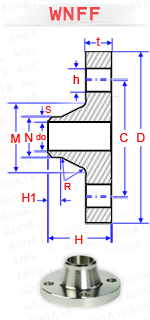

2632 WNFF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN10 > 2632 WNFF

material-composition
NOMINAL BORES OUTSIDE DIA. DIA. OF BORE OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE(MM) LENGTH THRU HUB(MM) THICKNESS OF NECK(MM) RADIUS OF FILLET(MM) LENGTH OF NECK(MM) NUMBER OF BOLT DIA. OF BOLT HOLE(MM) APPROX. WEIGHT (KG)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1
    do D t C H S Rtd>



 H1   h
10 17.2 26 75 12 50 28 1.8 4 6 4 11 0.335
14 22
15 21.3 30 80 12 55 30 2 4 6 4 11 0.392
20 28
20 26.9 38 90 14 65 32 2.3 4 6 4 11 0.592
25 35
25 33.7 42 100 14 75 35 2.6 4 6 4 11 0.747
30 40
32 42.4 55 120 14 90 35 2.6 6 6 4 14 1.05
38 50
40 48.3 62 130 14 100 38 2.6 6 7 4 14 1.18
44.5 58
50 60.3 74 140 14 110 38 2.9 6 8 4 14 1.34
57 70
65 76.1 88 160 14 130 38 2.9 6 9 4 14 1.67
- -
80 88.9 102 190 16 150 42 3.2 8 10 4 18 2.71
- -
100 114.3 130 210 16 170 45 3.6 8 10 4 18 3.24
108 122
125 139.7 155 240 18 200 48 4 8 10 8 18 4.49
133 148
150 168.3 184 265 18 225 48 4.5 10 12 8 18 5.15
159 172
200 219.1 236 320 20 280 55 5.9 10 15 8 18 7.78
- -
250 273 290 375 22 335 60 6.3 12 15 12 18 10.8
267 282
300 323.9 342 440 22 395 62 7.1 12 15 12 22 14
- -
350 355.6 385 490 22 445 62 7.1 12 15 12 22 18.5/16.7
368 385
400 406.4 438 540 22 495 65 7.1 12 15 16 22 21.2/19.0
419 438
500 508 538 645 24 600 68 7.1 12 15 20 22 28.6
- -
600 610 640 755 24 705 70 7.1 12 16 20 26 31.5
- -
700 711 740 860 24 810 70 7.1 12 16 24 26 37.4
-
800 813 842 975 24 920 70 7.1 12 16 24 30 46.1
- -
900 914 942 1075 26 1020 70 7.1 12 16 24 30 55.6
- -
1000 1016 1045 1175 26 1120 70 7.1 16 16 28 30 61.9
- -
1200 1220 1248 1405 28 1340 90 8 16 20 32 33 100
- -
1400 1420 1452 1630 32 1560 90 8 16 20 36 36 149
- -
1600 1620 1655 1830 34 1760 90 9 16 20 40 36 180
- -
1800 1820 1855 2045 36 1970 100 10 16 20 44 39 225
- -
2000 2020 2058 2265 38 2180 110 11 16 25 48 42 295
- -
2200 2220 2260 2475 42 2390 115 12 18 25 52 42 361
- -
2400 2420 2462 2685 44 2600 125 13 18 25 56 42 415
-

-
2600 2620 2665 2905 46 2810 130 14 18 25 60 48 530
- -
2800 2820 2865 3115 48 3020 135 15 18 30 64 48 643
- -
3000 3020 3068 3315 50 3220 140 16 18 30 68 48 777
- -
3200 3220 3272 3525 54 3430 150 16 20 30 72 48 851
- -
3400 3420 3475 3735 56 3640 160 18 20 35 76 48 993
- -
3600 3620 3678 3970 60 3860 165 18 20 35 80 56 1001
