2576 PLRF

PRODUCTS & SERVICES > STEEL > FLANGES > DIN Standard > PN10 > 2576 PLRF

material-composition
DIMENSION OF PIPE DIMENSION OF FLANGES APPROX. WEIGHT (KG.)
NOMINAL PIPE SIZE OD DIA. OF BORE (MM) OUTSIDE DIA. (MM) THICKNESS MIN. (MM) DIA. OF BOLT CIRCLE (MM) NUMBER OF BOLT DIA. OF BOLT HOLE (MM)
ISO SERIES1 ISO SERIES1
DIN SERIES1 DIN SERIES1

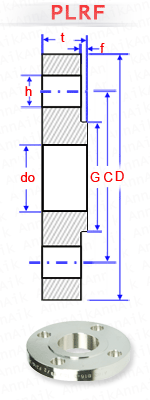

      D t C   h
10 17.2 17.7 75 12 50 4 11 0.36
14 14.5
15 21.3 22 80 12 55 4 11 0.41
20 21
20 26.9 27.6 90 14 65 4 11 0.60
25 26
25 33.7 34.4 100 14 75 4 11 0.74
30 31
32 42.4 43.1 120 16 90 4 14 1.19
38 39
40 48.3 49 130 16 100 4 14 1.39
44.5 45.5
50 60.3 61.1 140 16 110 4 14 1.53
57 58.1
65 76.1 77.1 160 16 130 4 14 1.89
- -
80 88.9 90.3 190 18 150 4 18 2.98
- -
100 114.3 115.9 210 18 170 4 18 3.46
108 109.6
125 139.7 141.6 240 20 200 8 18 4.60
133 134.8
150 168.3 170.5 265 20 225 8 18 5.22
159 161.1
200 219.1 221.8 320 22 280 8 18 7.15
- -
250 273 276.2 375 24 335 12 18 9.61
267 270.2
300 323.9 327.6 440 24 395 12 22 12.6
- -
350 355.6 359.7 490 26 445 12 22 15.6
368 372.2
400 406.4 411 540 28 495 16 22 18.4
419 423.7
450 457 462.5 595 30 550 16 22 21.4
- -
500 508 513.6 645 30 600 20 22 24.6
