Annaik Limited

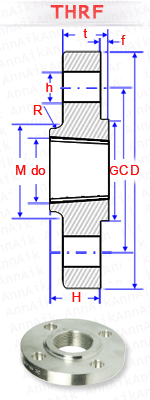

NOMINAL PIPE SIZE	DIA. OF BORE (MM)	OUTSIDE DIAMETER (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE	LENGTH THRU HUB	DIA. OF BASE AT HUB	DIA. OF RAISED FACE	THICKNESS OF RAISED FACE	NUMBER OF BOLT	DIA. OF BOLT HOLE	APPROX. WEIGHT (KG)
	d1	D	t	C	H	M	G	f		h
10	17.2	90	16	60	22	30	40	2	4	14	0.630
15	21.3	95	16	65	22	35	45	2	4	14	0.710
20	26.9	105	18	75	26	45	58	2	4	14	1.03
25	33.7	115	18	85	28	52	68	2	4	14	1.28
32	42.4	140	18	100	30	60	78	2	4	18	1.87
40	48.3	150	18	110	32	70	88	3	4	18	2.14
50	60.3	165	20	125	34	85	102	3	4	18	2.85
65	76.1	185	22	145	38	105	122	3	8	18	3.85
80	88.9	200	24	160	40	118	138	3	8	18	4.80
100	114.3	235	24	190	44	145	162	3	8	22	6.43
125	139.7	270	26	220	48	170	188	3	8	26	8.77
150	165.1	300	28	250	52	200	218	3	8	26	10.5
