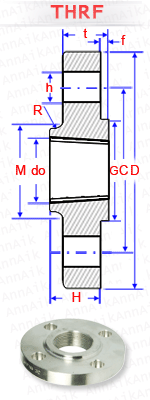

NOMINAL PIPE SIZE	DIA. OF BORE (MM)	OUTSIDE DIAMETER (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE	LENGTH THRU HUB	DIA. OF BASE AT HUB	DIA. OF RAISED FACE	THICKNESS OF RAISED FACE	NUMBER OF BOLT	DIA. OF BOLT HOLE	APPROX. WEIGHT (KG)
	d1	D	t	C	H	M	G	f		h
10	17.2	90	14	60	20	30	40	2	4	14	0.544
15	21.3	95	14	65	20	35	45	2	4	14	0.613
20	26.9	105	16	75	24	45	58	2	4	14	0.910
25	33.7	115	16	85	24	52	68	2	4	14	1.10
32	42.4	140	16	100	26	60	78	2	4	18	1.60
40	48.3	150	16	110	26	70	88	3	4	18	1.78
50	60.3	165	18	125	28	85	102	3	4	18	2.43
65	76.1	185	18	145	32	105	122	3	4	18	3.18
80	88.9	200	20	160	34	118	138	3	8	18	4.12
100	114.3	220	20	180	38	140	158	3	8	18	4.47
125	139.7	250	22	210	40	168	188	3	8	18	6.13
150	165.1	285	22	240	44	195	212	3	8	22	7.92
