NOMINAL PIPE SIZE	DIA. OF BORE (MM)	OUTSIDE DIAMETER (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE	LENGTH THRU HUB	DIA. OF BASE AT HUB	DIA. OF RAISED FACE	THICKNESS OF RAISED FACE	NUMBER OF BOLT	DIA. OF BOLT HOLE	APPROX. WEIGHT (KG)

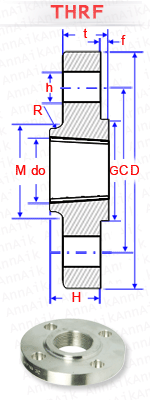

	d1	D	t	C	H	M	G	f		h
10	17.2	75	12	50	20	25	35	2	4	11	0.323
15	21.3	80	12	55	20	30	40	2	4	11	0.373
20	26.9	90	14	65	24	40	50	2	4	11	0.590
25	33.7	100	14	75	24	50	60	2	4	11	0.743
32	42.4	120	14	90	26	60	70	2	4	14	1.05
40	48.3	130	14	100	26	70	80	2	4	14	1.20
50	60.3	140	14	110	28	80	90	3	4	14	1.37
65	76.1	160	14	130	32	100	110	3	4	14	1.92
80	88.9	190	16	150	34	110	128	3	4	18	2.82
100	114.3	210	16	170	38	130	148	3	4	18	3.19
125	139.7	240	18	200	40	160	178	3	8	18	4.47
150	165.1	265	18	225	44	185	202	3	8	18	5.30
