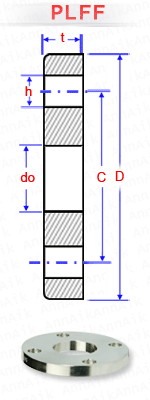

2545 PLFF

DIMENSION OF PIPE		DIMENSION OF FLANGES						APPROX. WEIGHT (KG.)
NOMINAL PIPE SIZE	OD	DIA. OF BORE (MM)	OUTSIDE DIA. (MM)	THICKNESS MIN. (MM)	DIA. OF BOLT CIRCLE (MM)	NUMBER OF BOLT	DIA. OF BOLT HOLE (MM)
	ISO SERIES1	ISO SERIES1
	DIN SERIES1	DIN SERIES1
			D	t	C		h
10	17.2	17.7	90	16	60	4	14	0.69
10	14	14.5	90	16	60	4	14	0.69
15	21.3	22	95	16	65	4	14	0.77
15	20	21	95	16	65	4	14	0.77
20	26.9	27.6	105	18	75	4	14	1.06
20	25	26	105	18	75	4	14	1.06
25	33.7	34.4	115	18	85	4	14	1.26
25	30	31	115	18	85	4	14	1.26
32	42.4	43.1	140	18	100	4	18	1.83
32	38	39	140	18	100	4	18	1.83
40	48.3	49	150	18	110	4	18	2.09
40	44.5	45.5	150	18	110	4	18	2.09
50	60.3	61.1	165	20	125	4	18	2.83
50	57	58.1	165	20	125	4	18	2.83
65	76.1	77.1	185	22	145	8	18	3.49
65	-	-	185	22	145	8	18	3.49
80	88.9	90.3	200	24	160	8	18	4.33
80	-	-	200	24	160	8	18	4.33
100	114.3	115.9	235	24	190	8	22	5.61
100	108	109.6	235	24	190	8	22	5.61
125	139.7	141.6	270	26	220	8	26	7.61
125	133	134.8	270	26	220	8	26	7.61
150	168.3	170.5	300	28	250	8	26	9.58
150	159	161.1	300	28	250	8	26	9.58
200	219.1	221.8	375	34	320	12	30	16.9
200	-	-	375	34	320	12	30	16.9
250	273	276.2	450	38	385	12	33	26.51
250	267	270.2	450	38	385	12	33	26.51
300	323.9	327.6	515	42	450	16	33	36.38
300	-	-	515	42	450	16	33	36.38
350	355.6	359.7	580	46	510	16	36	52.84
350	368	372.2	580	46	510	16	36	52.84
400	406.4	411	660	50	585	16	39	74.72
400	419	423.7	660	50	585	16	39	74.72
500	508	513.6	755	56	670	20	42	93.55
